Cost-Effective H5V80DT-NOSER-9C00 Hydraulic Pump for 14-Ton Carriers

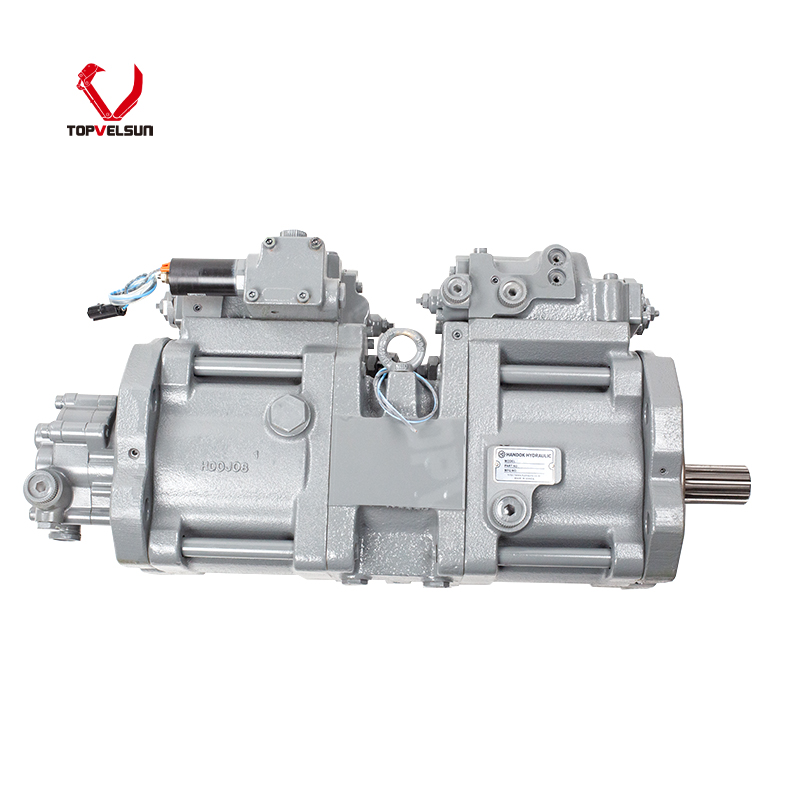

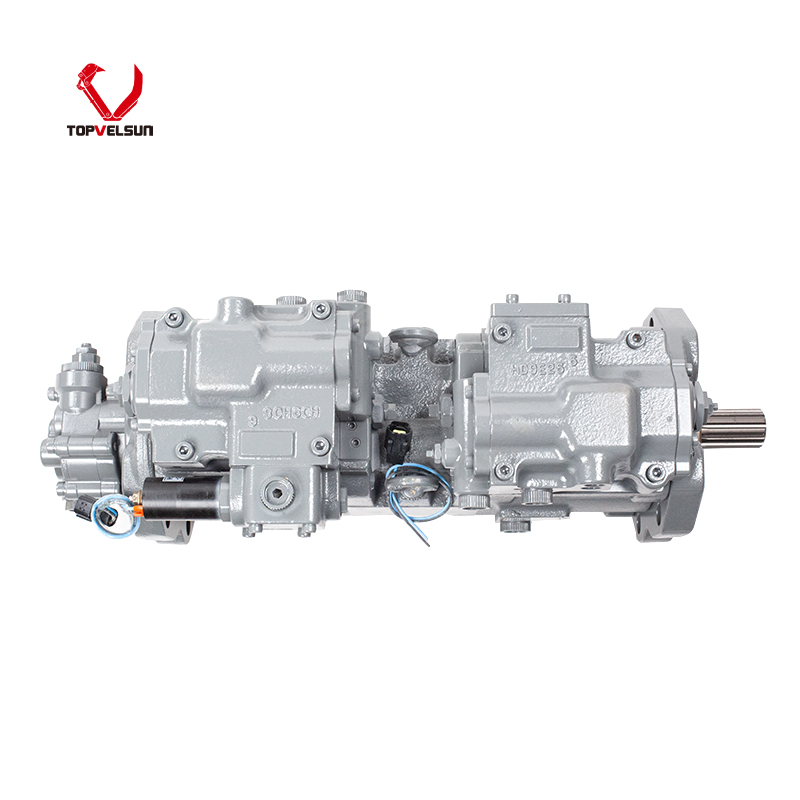

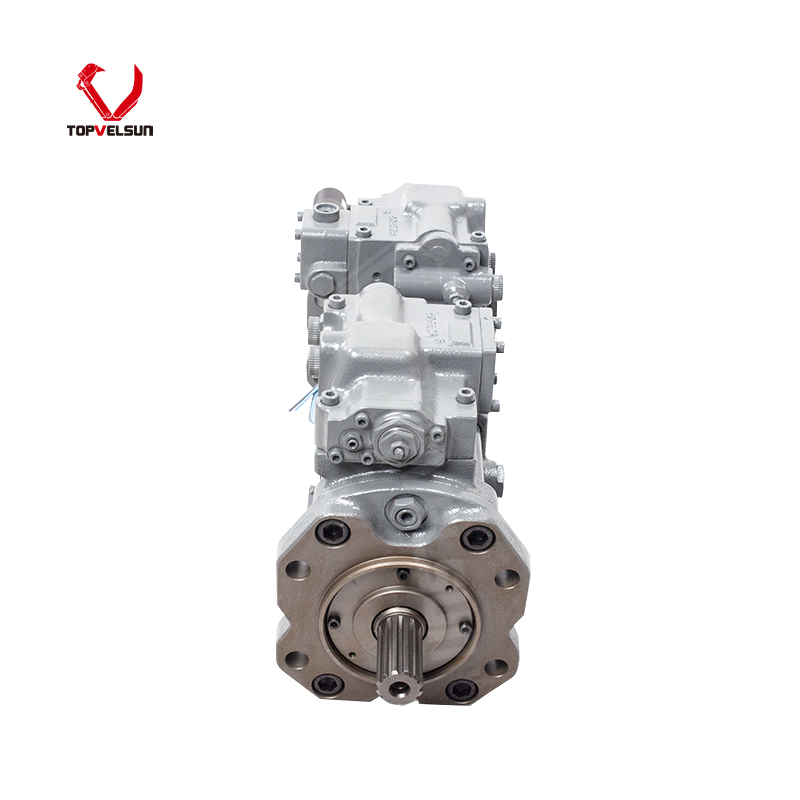

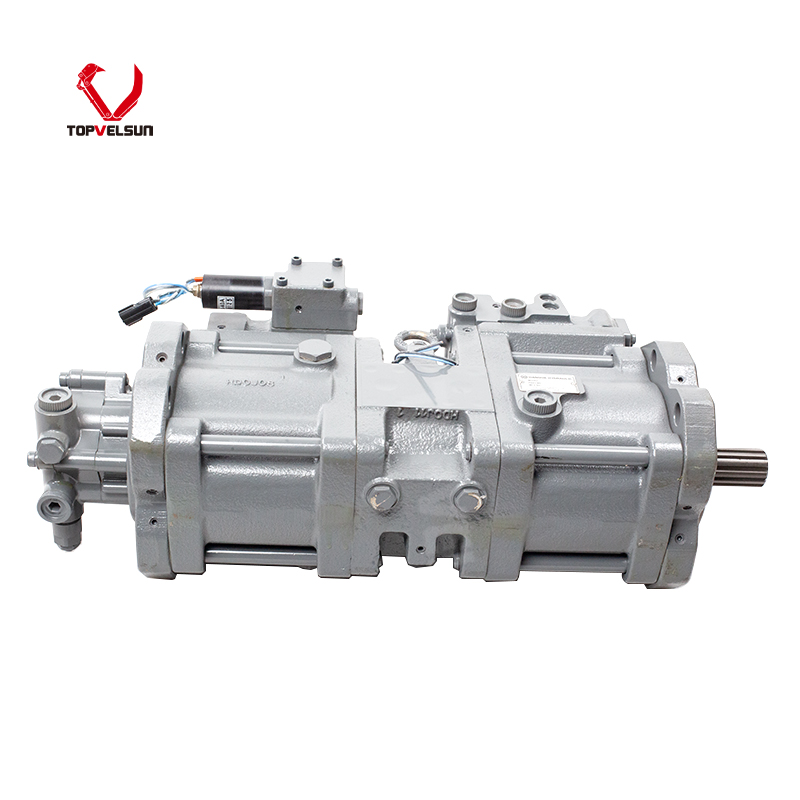

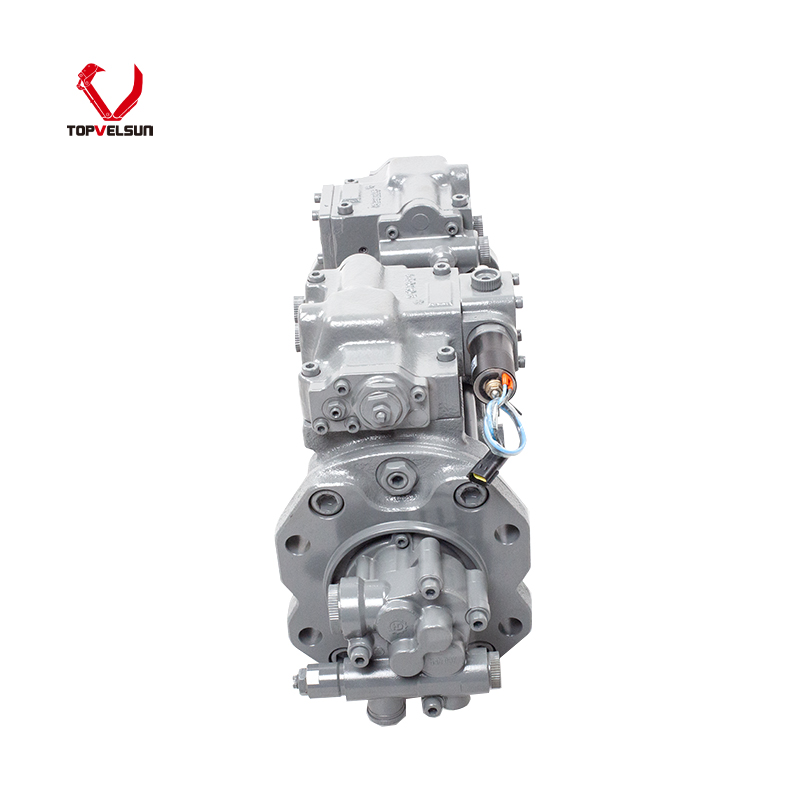

H5V80DT-NOSER-9C00 Hydraulic Main Pump for 14-Ton Class Equipment

The H5V80DT-NOSER-9C00 hydraulic main pump is supplied for excavator and carrier hydraulic system repair. It is commonly searched as H5V80DT-NOSER-9C00, H5V80DT NOSER 9C00, hydraulic main pump, piston pump assembly, hydraulic piston pump or excavator main pump for 14-ton class equipment references.

This page focuses on H5V80DT-NOSER-9C00 as the main pump model. Final fitment should be confirmed by the old pump nameplate, shaft type, tooth count, front and rear flange, regulator position, oil port layout, mounting dimensions and machine information before ordering.

Equipment Reference and Fitment Notes

This hydraulic pump is positioned for 14-ton class excavator or carrier hydraulic system repair. Because hydraulic pump fitment can vary by machine version, pump configuration, shaft specification and regulator setting, the equipment tonnage alone should not be used as the only fitment proof.

Before ordering, compare the removed pump with the replacement pump carefully. Photos of the old pump nameplate, shaft side, mounting flange, regulator side, oil ports and complete pump body are useful for confirmation.

If the machine model is available, please provide the machine brand, model, serial number and old pump photos together. This helps confirm whether the H5V80DT-NOSER-9C00 pump assembly matches the original hydraulic system layout.

Pump Model and Reference Notes

H5V80DT-NOSER-9C00 is the main model number of this product page. It should stay visible in the SEO Title, H1, top parameters, first paragraph, product body and image ALT text.

Market references may mention nearby pump models such as K5V80DT, H5V80DTP-NISER-9C00, H5V80DTP-YIDAR-9C00 or H3V63DT-NISER-9C00. These should be treated as checking references only unless the pump nameplate, shaft, flange, port layout and regulator configuration confirm interchange.

Do not rely on the model series name alone. Similar hydraulic piston pumps can differ by displacement, shaft teeth, rotation direction, port size, regulator type, mounting flange and gear pump configuration.

How to Confirm the Correct Hydraulic Main Pump

Hydraulic main pumps can look similar from the outside, but small differences in shaft, flange, oil port direction and regulator structure may affect installation and working pressure. Please compare the removed pump before ordering.

• Confirm whether the old pump model is H5V80DT-NOSER-9C00.

• Check the shaft type, tooth count and shaft length.

• Compare the front flange, rear flange and mounting hole position.

• Check the main oil port size, pilot port position and drain port layout.

• Confirm regulator position, gear pump configuration and rotation direction.

• Send photos of the old pump nameplate, shaft side, port side, regulator side and machine nameplate before quotation if you are not sure.

Common Hydraulic Pump Failure Symptoms

A hydraulic main pump may need inspection or replacement when the machine has weak hydraulic power, slow operation, abnormal pump noise, unstable pressure, oil overheating, heavy internal leakage, poor combined movement, pressure drop under load or metal particles in hydraulic oil.

Before replacing the pump, check the hydraulic oil level, oil cleanliness, suction line, return filter, pilot pressure, relief valve setting, regulator control and related hydraulic components. Some hydraulic problems may be caused by system contamination, control valve leakage or pilot signal issues rather than the pump itself.

If the old pump failed because of contaminated oil, blocked filter, air suction, poor lubrication or incorrect pressure setting, the root cause should be corrected before installing the replacement pump. Otherwise, the new pump assembly may fail again.

Installation and Testing Notes

Before installation, clean the hydraulic system and inspect the oil tank, suction hose, return filter and pilot lines. Do not install the replacement pump into a contaminated hydraulic system.

After installation, fill and bleed the pump according to the repair procedure. Do not run the pump dry. Check oil leakage, abnormal noise, pilot pressure, main pressure and machine movement before full-load operation.

If the pump starts normally but the machine movement is still weak or unstable, inspect the regulator control, pilot circuit, relief valve, control valve and hydraulic motor load before assuming the new pump is defective.

Buying Notes for Repair Shops and Parts Distributors

For repair shops, this H5V80DT-NOSER-9C00 hydraulic main pump is suitable for hydraulic system repair when the old pump is worn, noisy, leaking internally or unable to maintain working pressure.

For parts distributors, it can be supplied as an H5V80DT-NOSER-9C00 piston pump assembly reference for 14-ton class equipment repair demand. Topvelsun supports small repair orders and bulk inquiries. Please send the required quantity, old pump nameplate, machine model, serial number and photos of the old pump from multiple angles.

FAQ

What is the main product on this page?

This page is for the H5V80DT-NOSER-9C00 hydraulic main pump piston pump assembly used for excavator and carrier hydraulic system repair.

Can K5V80DT be used as a replacement reference?

K5V80DT may appear in nearby market references, but it should not be treated as an automatic replacement for H5V80DT-NOSER-9C00. Please confirm the old pump nameplate, shaft, flange, port layout and regulator configuration before ordering.

Can I confirm this pump by equipment tonnage only?

No. Equipment tonnage is only a basic reference. Hydraulic pump fitment should be confirmed by the old pump model, shaft type, tooth count, mounting flange, oil port layout, regulator type and machine serial number.

What photos should I send before ordering?

Please send photos of the old pump nameplate, shaft side, front flange, rear side, oil ports, regulator side and machine nameplate. These photos help confirm whether H5V80DT-NOSER-9C00 is the correct pump assembly.

What should be checked before installing the replacement pump?

The hydraulic oil, filters, suction line, oil tank, pilot pressure, relief valve and contamination level should be checked before installation. A clean hydraulic system helps prevent early pump failure.
