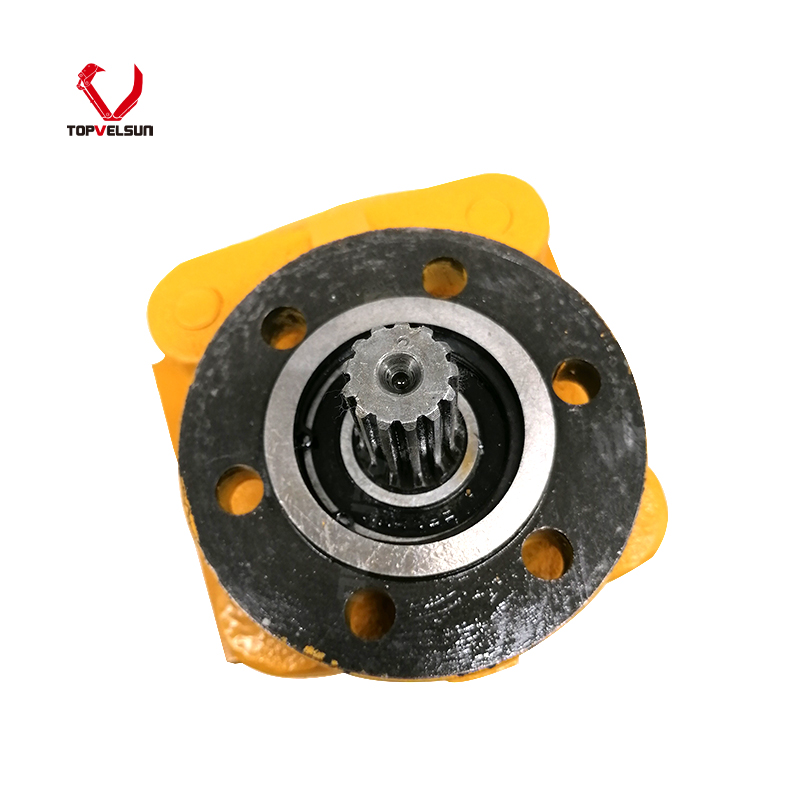

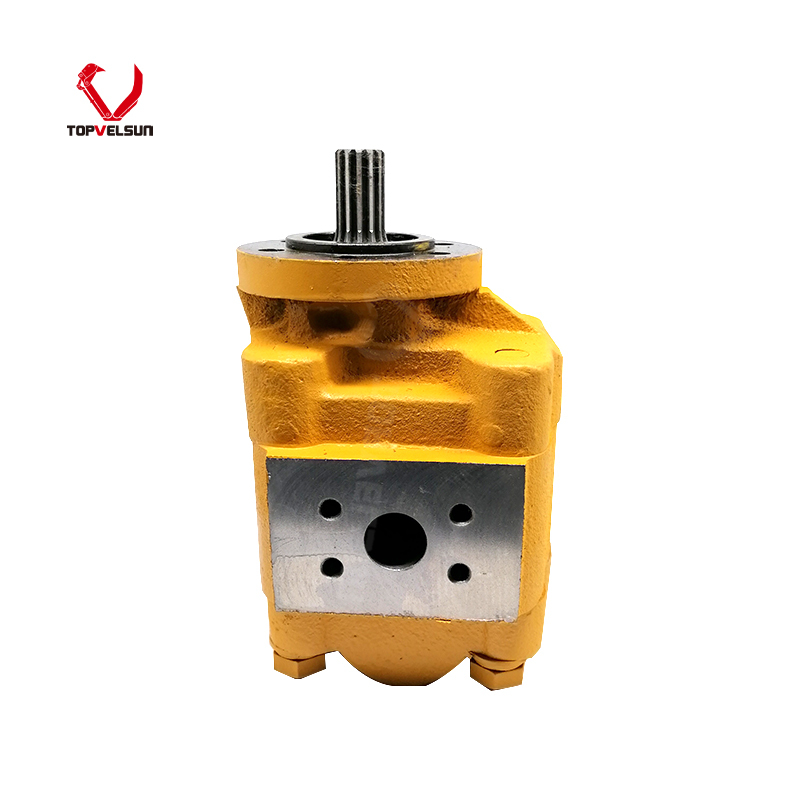

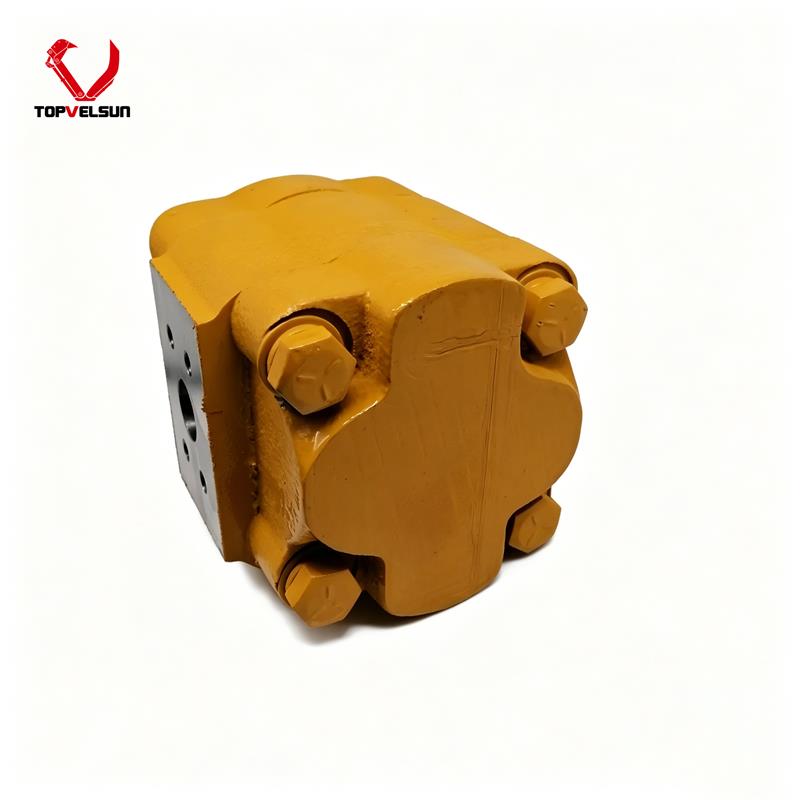

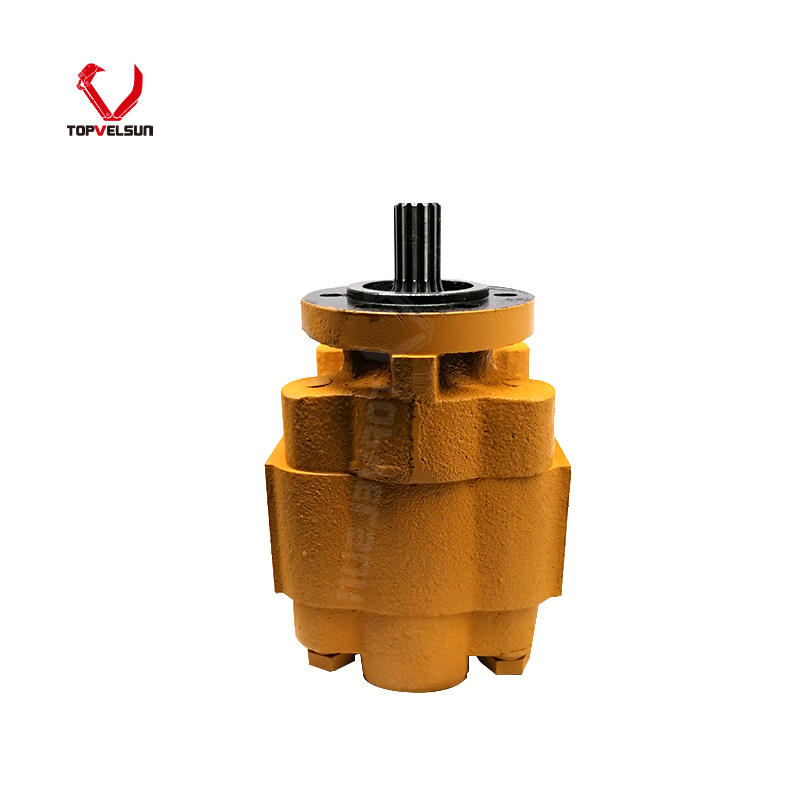

312-9310-007 Hydraulic Gear Pump for TCM Payloader

312-9310-007 Hydraulic Gear Pump for TCM Payloader

The 312-9310-007 hydraulic gear pump is supplied for TCM Payloader and TCM wheel loader hydraulic system repair. It is used to provide hydraulic oil flow for loader working functions and should be selected by the original pump number and physical configuration, not by machine name alone.

This page focuses on 312-9310-007 as the main part number. The no-hyphen format 3129310007 is also used in parts searches and supplier records, but it should not replace physical pump confirmation. Final fitment should be verified by the old pump label, shaft type, mounting face, hydraulic port layout, pump body shape and machine information before ordering.

Part Number and Application Notes

312-9310-007 is commonly searched as a hydraulic gear pump reference. The same number may also appear in the compact format 3129310007. These formats should be treated as the same checking direction for this product page.

The application focus of this page should remain TCM Payloader and TCM wheel loader hydraulic system repair. It should not be positioned as an excavator main pump, universal hydraulic pump or general Parker pump page unless the old pump number and physical configuration confirm that direction.

Because public fitment information for this pump is limited, the application should be treated as a reference. For accurate quotation, compare the old pump number, shaft, mounting face, port direction, pump body layout and rotation direction before shipment.

How to Confirm the Correct 312-9310-007 Gear Pump

Hydraulic gear pumps can look similar from the outside, but small differences in shaft, port or mounting design may make the pump unsuitable. Before ordering, check the removed pump carefully.

• Confirm whether the old pump number is 312-9310-007 or 3129310007.

• Compare the shaft type, shaft length, spline or keyway design.

• Check the mounting face, pilot diameter and mounting hole pattern.

• Compare inlet and outlet port size, thread type and port direction.

• Confirm pump body layout and rotation direction before installation.

• Send machine model, serial number and old pump photos before quotation if you are not sure.

Common Failure Symptoms

A TCM wheel loader hydraulic gear pump may need replacement when the machine shows slow lift or tilt movement, weak hydraulic force, unstable pressure, abnormal pump noise, oil leakage, hydraulic oil overheating or metal particles in the oil filter.

These symptoms are not always caused by the pump itself. Blocked filters, dirty hydraulic oil, air entry, suction hose restriction, control valve faults, cylinder leakage and relief valve problems can create similar problems.

If metal particles are found in the hydraulic system, clean the hydraulic tank, lines and filters before installing a replacement pump. Installing a new gear pump into a contaminated hydraulic circuit can cause repeated failure.

Troubleshooting Before Replacement

Before replacing the 312-9310-007 pump, inspect the hydraulic circuit to avoid unnecessary replacement or repeated damage after installation.

• Check hydraulic oil level, oil condition and oil viscosity.

• Inspect suction lines, return lines, fittings and hydraulic filters.

• Check for air entry, loose connections or collapsed hoses.

• Measure hydraulic pressure and flow according to the machine service procedure.

• Inspect relief valves, control valves, cylinders and steering-related hydraulic components.

• Confirm whether the fault is caused by the pump itself or another hydraulic component.

Installation and Maintenance Notes

Clean the pump mounting area and hydraulic line connections before removal. Cap all open hydraulic ports to prevent dust, water and metal particles from entering the hydraulic system.

Before installation, compare the replacement pump with the removed unit. Check shaft alignment, mounting face, port direction, hose routing and rotation direction before tightening hydraulic lines.

Inspect or replace hydraulic filters, and lubricate or pre-fill the pump according to the service procedure before first startup. Do not run the pump dry.

After installation, start the machine at low speed first. Check for leakage, abnormal noise, unstable pressure and oil temperature before operating under heavy load.

Buying Notes for Repair Shops and Parts Distributors

For repair shops, this 312-9310-007 hydraulic gear pump is suitable for TCM Payloader and wheel loader hydraulic system repair when the original pump is worn, leaking or unable to maintain stable oil flow. For parts distributors, it can be supplied as a replacement gear pump reference for TCM loader service demand.

Topvelsun supports small repair orders and bulk inquiries. To improve quotation accuracy, please send the required quantity, old pump nameplate, machine model, serial number and photos of the shaft, mounting face and hydraulic ports.

FAQ

What is the main product on this page?

This page is for the 312-9310-007 hydraulic gear pump used for TCM Payloader and TCM wheel loader hydraulic system repair.

Is 3129310007 the same search reference as 312-9310-007?

3129310007 is the no-hyphen writing format of 312-9310-007. Both formats may appear in parts searches and supplier records, but the old pump should still be checked before ordering.

Does this pump have confirmed cross reference numbers?

No stable public cross-reference list was found for this pump. If your old pump has another brand code, casting number or equipment number, please send clear photos for checking before ordering.

What should I check before ordering?

Please check the old pump number, shaft type, mounting hole pattern, hydraulic port direction, pump body shape, rotation direction and machine serial number. Clear photos of the removed pump are recommended.

What can cause repeated hydraulic gear pump failure?

Repeated failure may be caused by contaminated hydraulic oil, blocked filters, air entry, restricted suction lines, relief valve problems, incorrect installation or metal particles left in the hydraulic system.
