3848611 Fuel Transfer Pump for CAT 3406E C13 C15 C16 C18 Engines

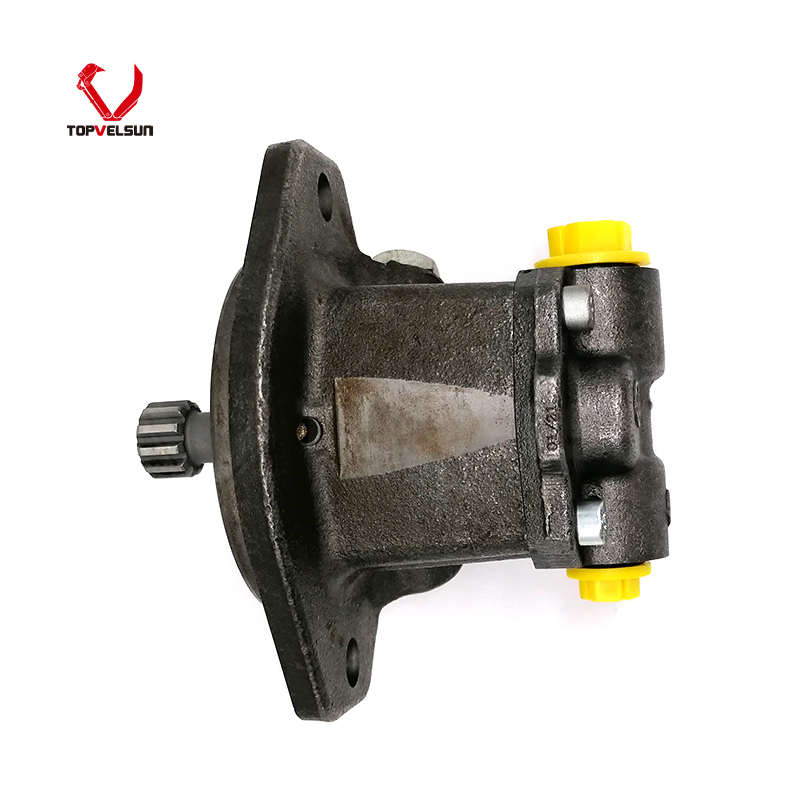

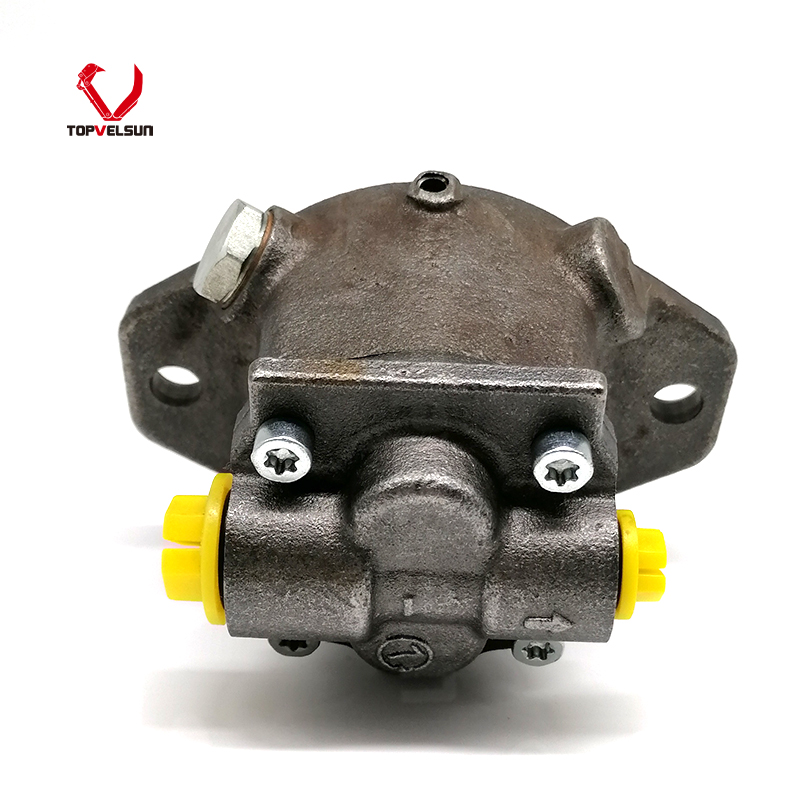

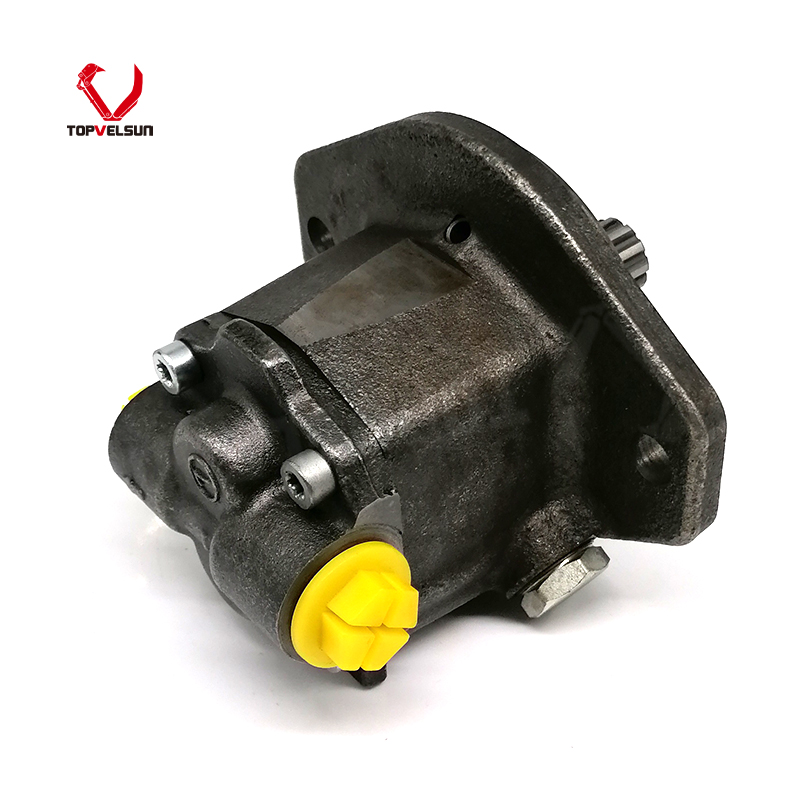

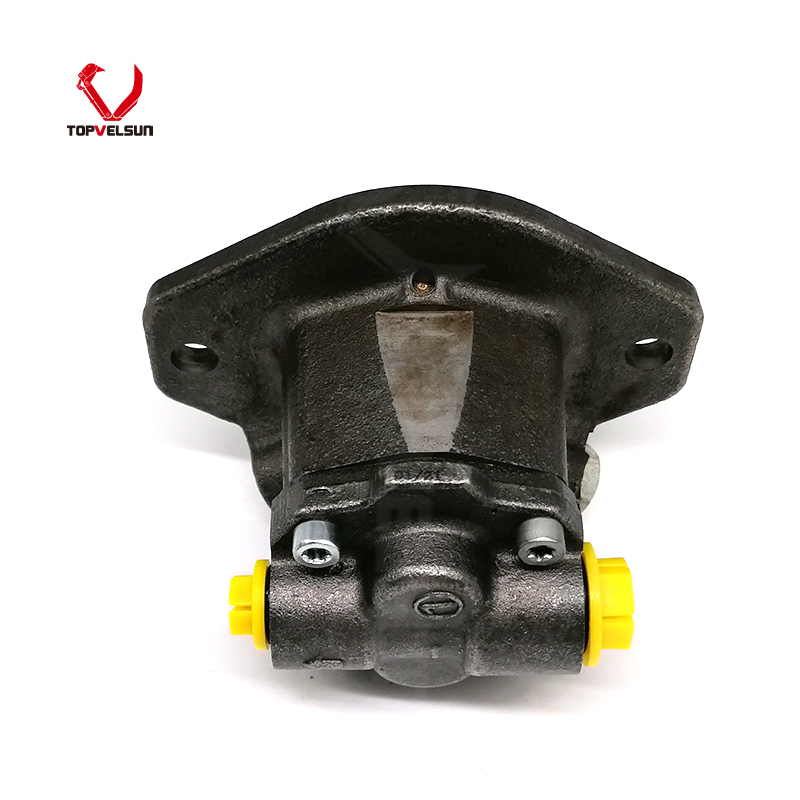

384-8611 Fuel Transfer Pump Overview

The 384-8611 fuel transfer pump is designed for Caterpillar diesel engine fuel systems. It draws diesel fuel from the tank and supplies a continuous flow of fuel to the engine injection system.

Stable fuel delivery is essential for dependable starting, consistent engine performance and proper operation of the fuel injection system. A worn or damaged transfer pump may result in hard starting, insufficient fuel pressure, unstable engine operation or reduced power.

Compatible Caterpillar Engine Applications

The 384-8611 fuel supply pump is used in selected Caterpillar engine applications, including 3406E, C13, C15, C16 and C18.

These engines are used across a wide range of Caterpillar trucks, generator sets, wheel loaders, motor graders, tractors and other heavy equipment.

Because the same engine family may use different pump configurations, compatibility should be confirmed using the engine model, equipment model and serial number.

384-8611 and 20R-1524 Reference Information

384-8611 is the primary part number used for this fuel transfer pump.

20R-1524 is associated with the corresponding Caterpillar remanufactured pump option. It may be used as a replacement reference when the required pump configuration and application match.

Customers should confirm whether they require a new aftermarket replacement for 384-8611 or a unit corresponding to the 20R-1524 remanufactured reference.

Fuel Transfer Pump Function

The fuel transfer pump performs several important functions within the diesel fuel system:

It draws fuel from the fuel tank.

It delivers fuel toward the engine injection system.

It helps maintain a stable supply of fuel during engine operation.

It supports reliable starting and consistent engine performance.

It helps prevent fuel starvation under changing operating loads.

Product Features

Designed for heavy-duty diesel engine fuel systems.

Suitable for selected Caterpillar 3406E, C13, C15, C16 and C18 applications.

Replacement reference for Caterpillar 384-8611.

Associated with Caterpillar reman reference 20R-1524.

Built for distributors, repair shops and heavy equipment maintenance companies.

Common Fuel Transfer Pump Problems

A worn or damaged 384-8611 fuel transfer pump may cause insufficient or unstable fuel delivery to the engine. Common symptoms include difficult starting, especially after the equipment has been parked for an extended period.

The engine may also experience unstable idling, hesitation during acceleration or a noticeable loss of power under load. These symptoms can occur when the transfer pump is unable to maintain the required fuel flow and pressure.

Fuel leakage around the pump body, seals or connection points is another common sign of failure. Abnormal mechanical noise from the pump area may indicate internal component wear.

Common signs of a failing fuel transfer pump include:

Hard or delayed engine starting

Low or unstable fuel pressure

Engine hesitation or irregular idling

Loss of power under heavy load

Intermittent engine shutdown

Fuel leakage around the pump

Abnormal noise during operation

Replacing the damaged pump with a matching 384-8611 or 20R-1524 reference unit can help restore stable fuel delivery and normal engine performance.
