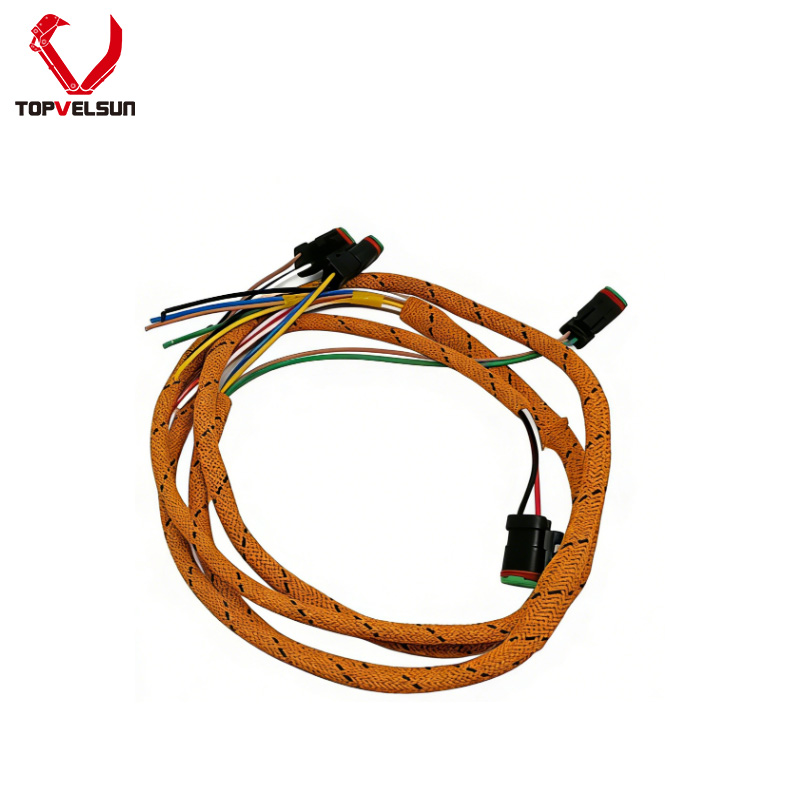

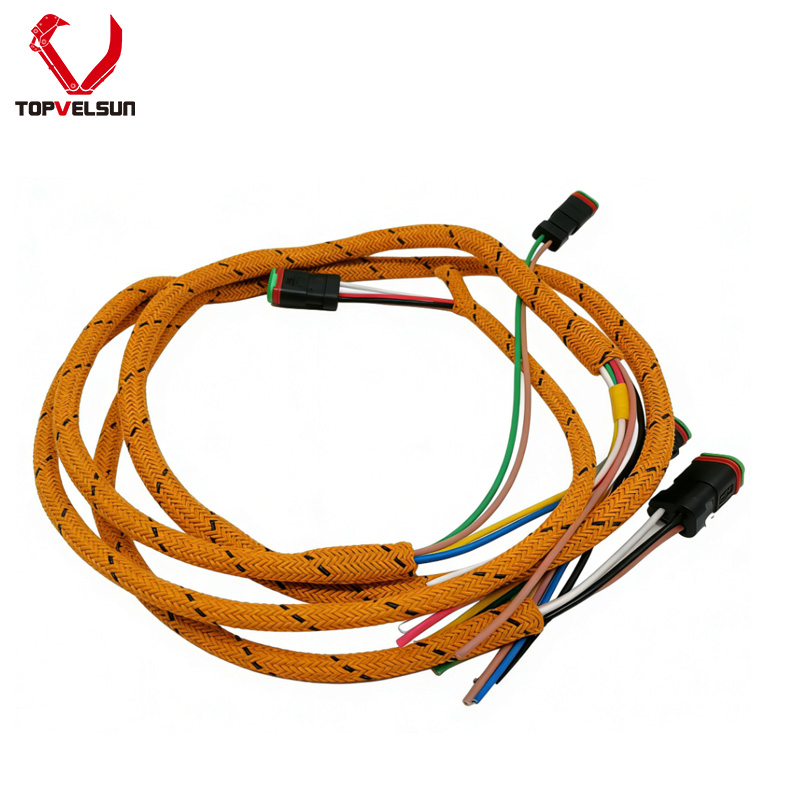

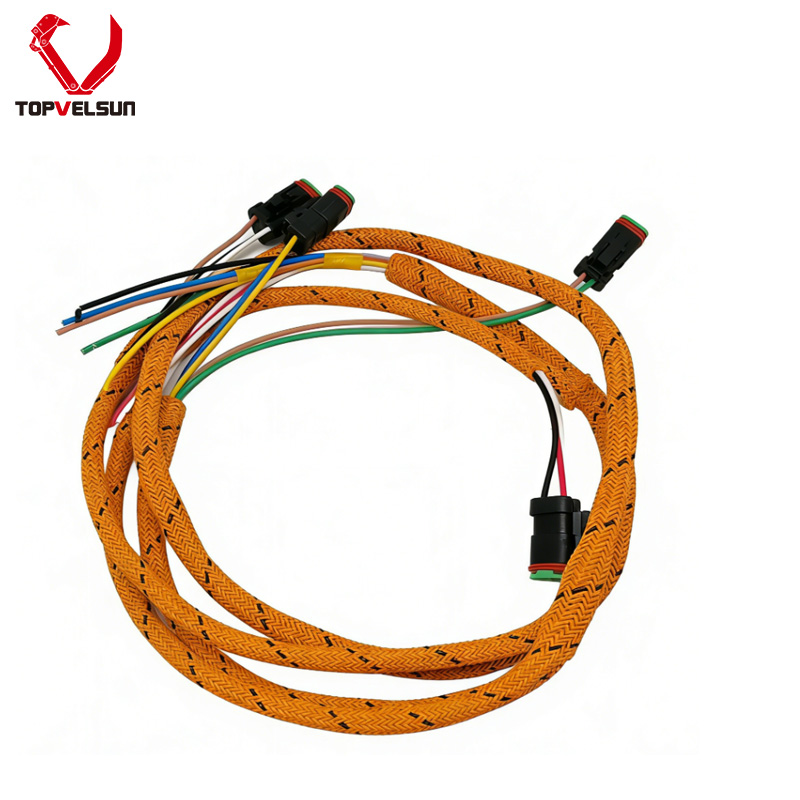

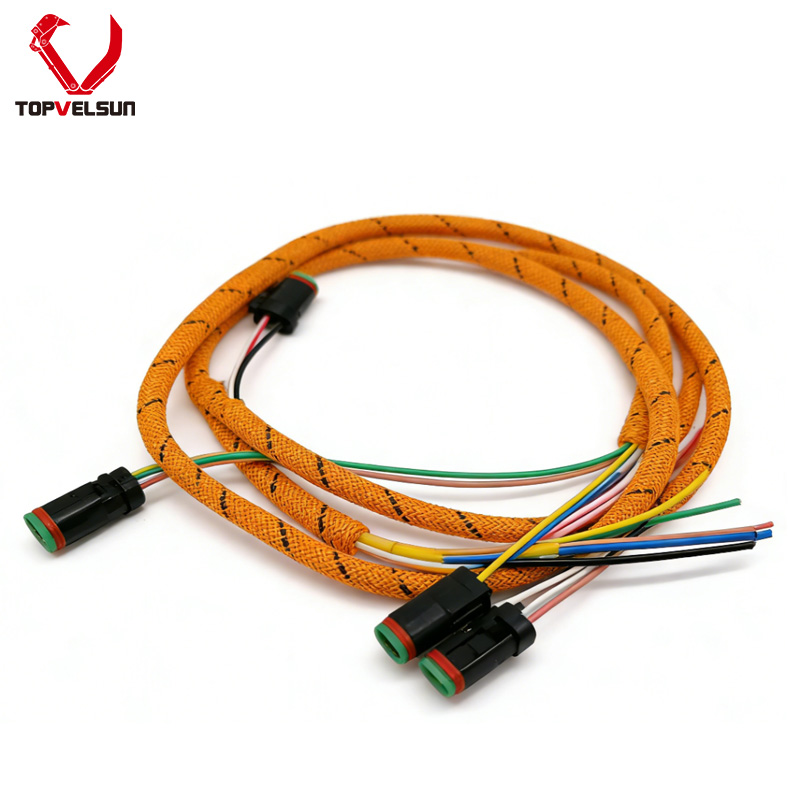

306-8718 Engine Wiring Harness for Caterpillar C4.2 Excavators (315D L, 319D L, 319D LN)

306-8718: Eliminate Electrical Downtime on Your Cat C4.2 Engine

The Caterpillar 300D-series excavators (15-ton to 19-ton class) are versatile workhorses on any construction site, heavily relying on the Cat C4.2 ACERT engine for efficient power delivery. However, the compact design of the C4.2 engine bay traps extreme heat. Over time, this bakes the factory wiring harness, causing the insulation to crack, wires to short out, and connectors to fail. This leads to erratic sensor data, sudden engine derating, and catastrophic communication loss with the ECM.

Engineered to lower your Total Cost of Ownership (TCO), our premium aftermarket 306-8718 Engine Wiring Harness is the definitive solution to chronic electrical faults. By replacing the entire degraded loom with this exact-fit, heat-resistant harness, you eliminate the endless hours mechanics spend chasing "phantom" shorts. This harness guarantees pure, uninterrupted signal transmission to your fuel injectors and rail sensors, keeping your excavator out of the shop and actively moving dirt.

Common Fault Codes & Deep Troubleshooting (Cat ADEM System)

If your Cat 315D L or 319D excavator is displaying the following CID (Component Identifier) fault codes on the monitor, a compromised 306-8718 wiring harness is highly likely:

1. CID 0001 through CID 0004 FMI 05 (Injector Cylinder 1-4 Open Circuit)

• Symptom: The C4.2 engine runs extremely rough, vibrates heavily, lacks digging power, and emits unburned white/black smoke.

• Troubleshooting: The harness routes directly to the electronic fuel injectors. Constant engine vibration often snaps the internal copper wires near the injector plugs. If a multimeter continuity test from the ECM plug to the injector terminal shows an open circuit, the 306-8718 harness must be replaced immediately to prevent unburned fuel from washing the cylinder walls.

2. CID 0164 FMI 03 / 04 (Injector Actuation Pressure Sensor Fault)

• Symptom: The machine experiences severe idle surging, stalls under load, or is forced into "Limp Mode."

• Troubleshooting: The ECM relies on this sensor to manage the common rail fuel pressure. If the harness insulation has rubbed away against the engine block, it will cause a short-to-ground (FMI 04) or short-to-battery (FMI 03). Inspect the wiring branch leading to the fuel rail; if it is oil-soaked or frayed, the harness has failed.

3. CID 0190 FMI 08 (Primary Engine Speed/Timing Signal Abnormal)

• Symptom: The excavator cranks endlessly but refuses to start, or suddenly shuts down while operating.

• Troubleshooting: The speed/timing sensor requires a perfectly shielded wire to send millisecond-accurate pulses to the ECM. If the shielding inside the harness is degraded by heat, electromagnetic interference will scramble the signal. A new harness is required to restore proper injection timing.

Official Installation & Maintenance Protocols

1. Mandatory ECM Power Down: Before disconnecting the old harness, you MUST turn off the battery disconnect switch. Unplugging the 306-8718 harness while the system is energized will cause voltage spikes that can permanently destroy the Cat ECM motherboard.



2. C4.2 Routing Compliance: The Cat C4.2 engine has specific routing paths designed to keep wiring away from the high-heat exhaust manifold and the cooling fan. You must route the new harness exactly along the original factory path. Utilize all provided P-clips and zip-tie anchor points to prevent the harness from sagging and chafing against rotating components.



3. Connector Preparation: Do not force the main multi-pin connectors into the ECM. Inspect the pins on the ECM side first. Use a fast-drying electronic contact cleaner to remove any diesel fuel, oil, or dust. Ensure the rubber weather seals on the new harness plugs are seated correctly before locking them into place to prevent future moisture intrusion.
