24V SD7H15 Compressor 15082742 11412632 for Volvo L110F L120F Loaders

15082742 SD7H15 A/C Compressor Overview

The 15082742 A/C compressor is a new aftermarket replacement for the cabin air conditioning systems used on selected Volvo excavators and wheel loaders. It cross-references Volvo part numbers 11412632, 14649606 and 14506862, together with Sanden compressor number 8243.

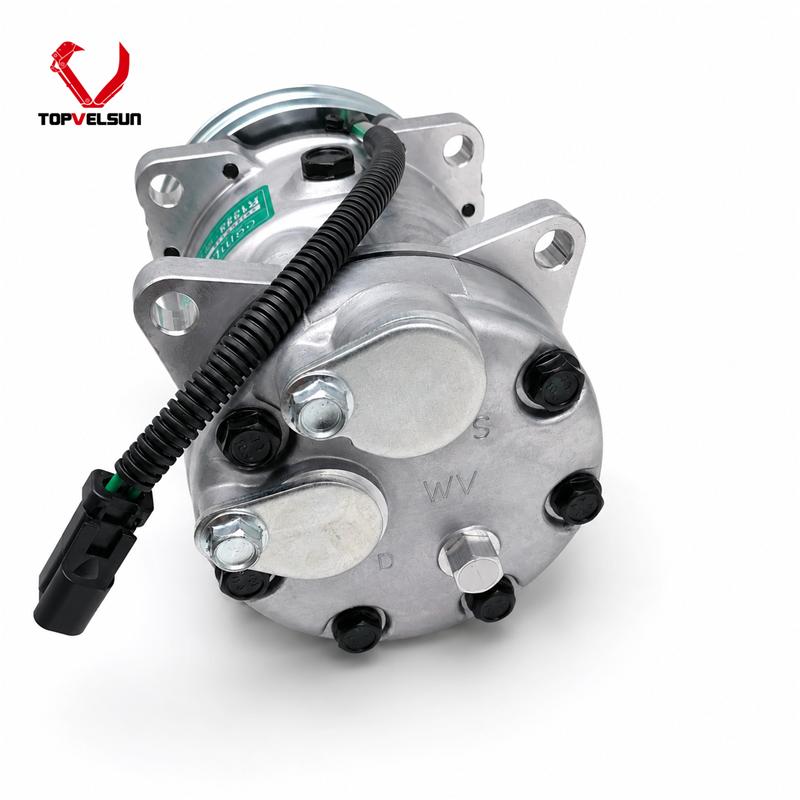

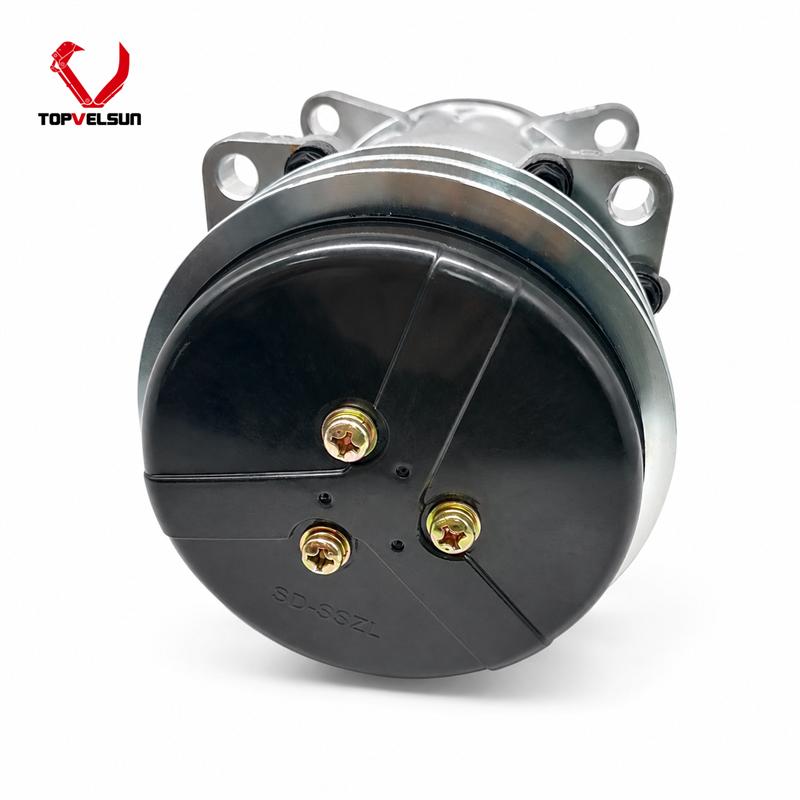

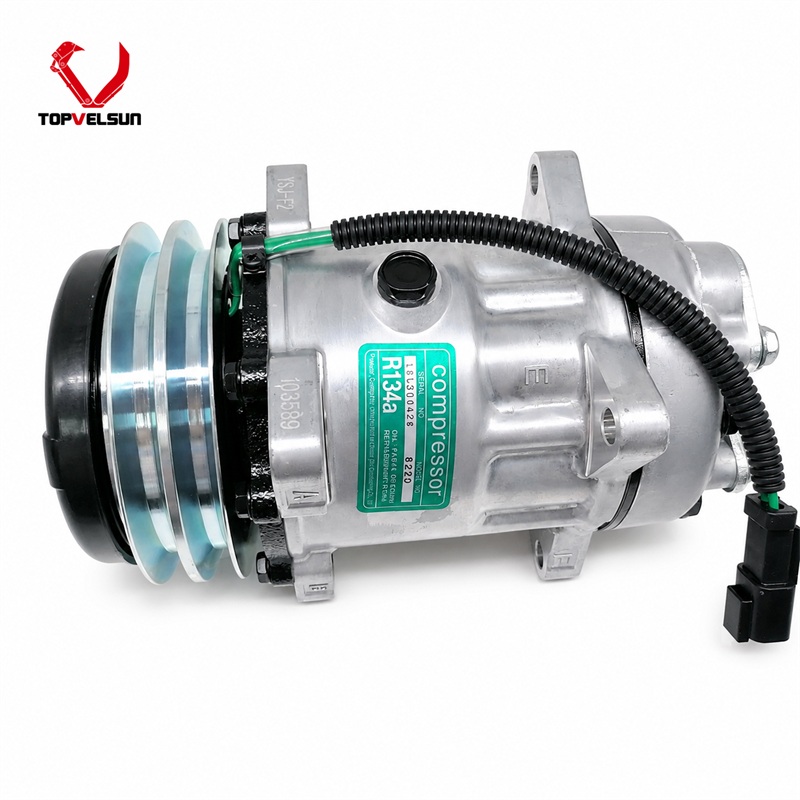

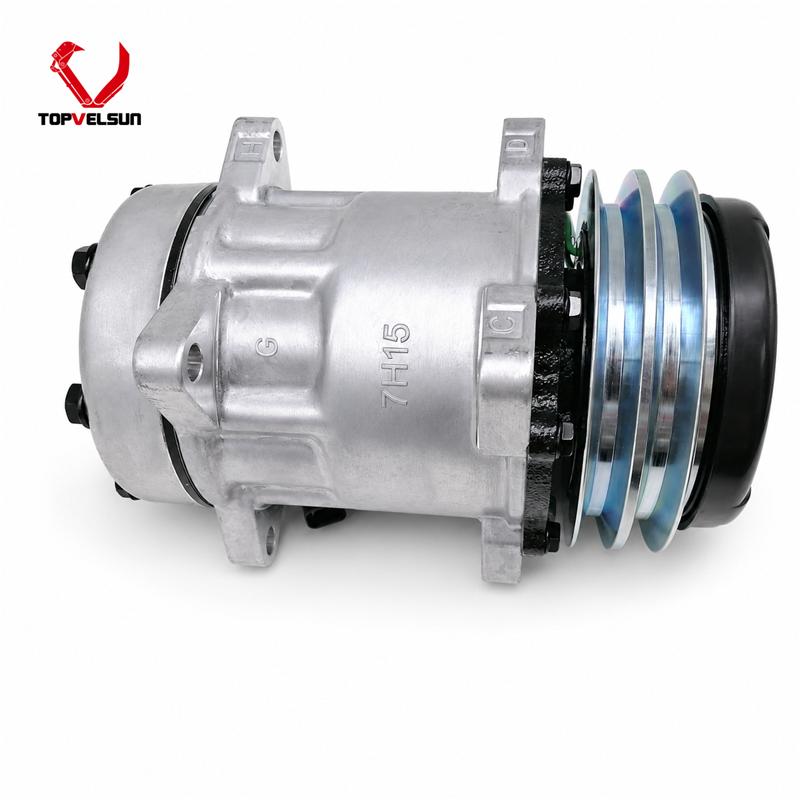

This SD7H15-type compressor uses a 24V electromagnetic clutch and a 132 mm double-groove V-belt pulley. The supplied compressor is designed for an R134a refrigerant system and is marked for PAG46 compressor oil or an equivalent specification.

Known applications include Volvo EC140B, EC160B, EC180B, EC200B, EC210B and EC240B excavators, together with L110F and L120F wheel loaders. Machine production versions may use different pulley, connector or refrigerant port configurations, so the original compressor should still be checked before ordering.

Fitment Checks Before Ordering

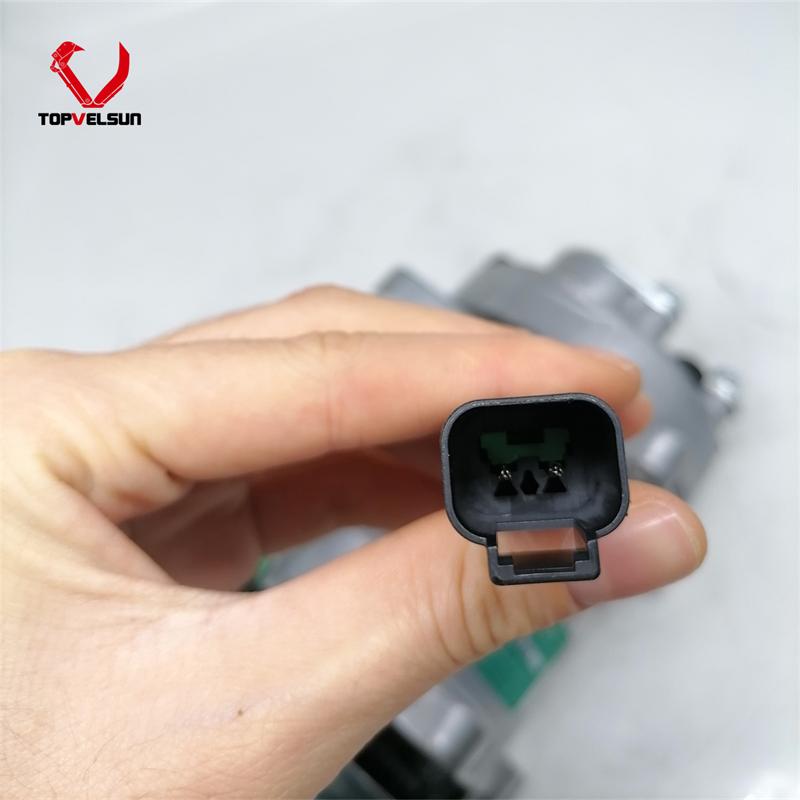

Compare the original compressor number, 24V clutch, mounting ears, two-groove pulley, electrical connector and refrigerant port arrangement with the product photos. Machine model alone may not identify every compressor configuration.

For accurate identification, provide the Volvo machine model, serial number, original compressor label and clear photos showing the pulley, connector, mounting points and refrigerant ports.

A/C System Checks Before Installation

Before installing the replacement compressor, inspect the refrigerant circuit for leakage, contamination and metal debris. Flush the system when required and inspect the receiver drier, expansion valve, condenser and refrigerant hoses.

Confirm the oil specification and total system oil quantity before installation. After fitting the compressor, evacuate the system, perform a leak test and recharge it with the specified amount of R134a refrigerant.

FAQ

Is this a 24V A/C compressor?

Yes. The compressor uses a 24V electromagnetic clutch and should not be connected to a 12V electrical system.

Does the compressor include the clutch and pulley?

Yes. It is supplied as one compressor assembly with an electromagnetic clutch and a double-groove V-belt pulley. Other installation parts are not included unless stated in the quotation.

Which refrigerant and compressor oil should be used?

The compressor is intended for an R134a system. The supplied unit is marked for PAG46 oil or an equivalent specification. The required total oil quantity should be confirmed from the machine service information.

How can I confirm fitment before ordering?

Check the original part number, machine serial number, voltage, pulley, mounting ears, connector and refrigerant ports. Photos of the existing compressor can also be used for configuration comparison.

What are the MOQ and warranty?

The minimum order quantity is one piece, and the standard warranty period is 6 months.
