SD7H15 Air Conditioning Compressor 0631102732 for Volvo EC140 EC210 EC260 EC290

0631102732 24V A/C Compressor Overview

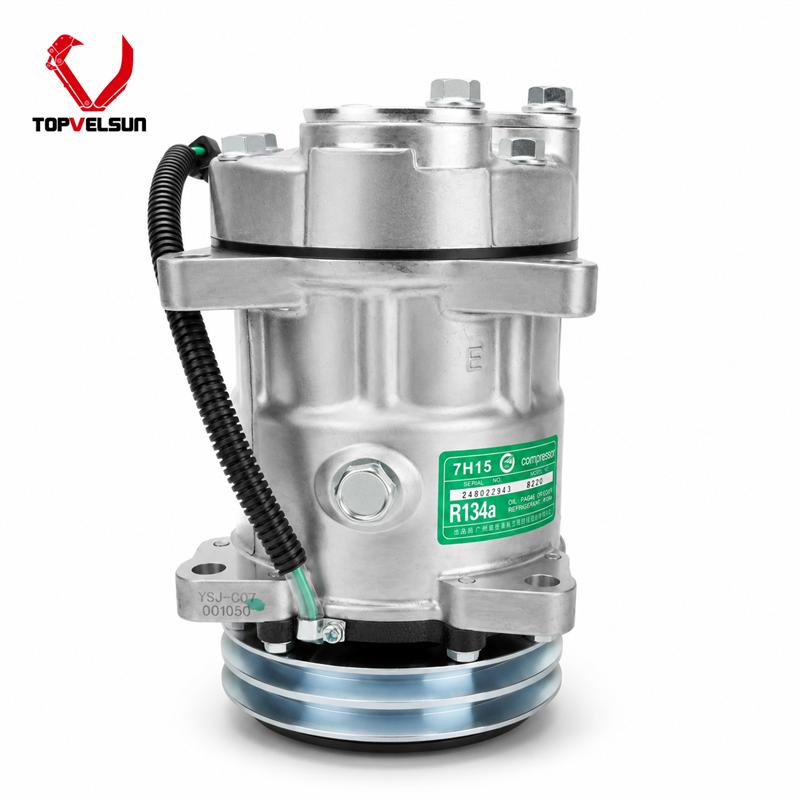

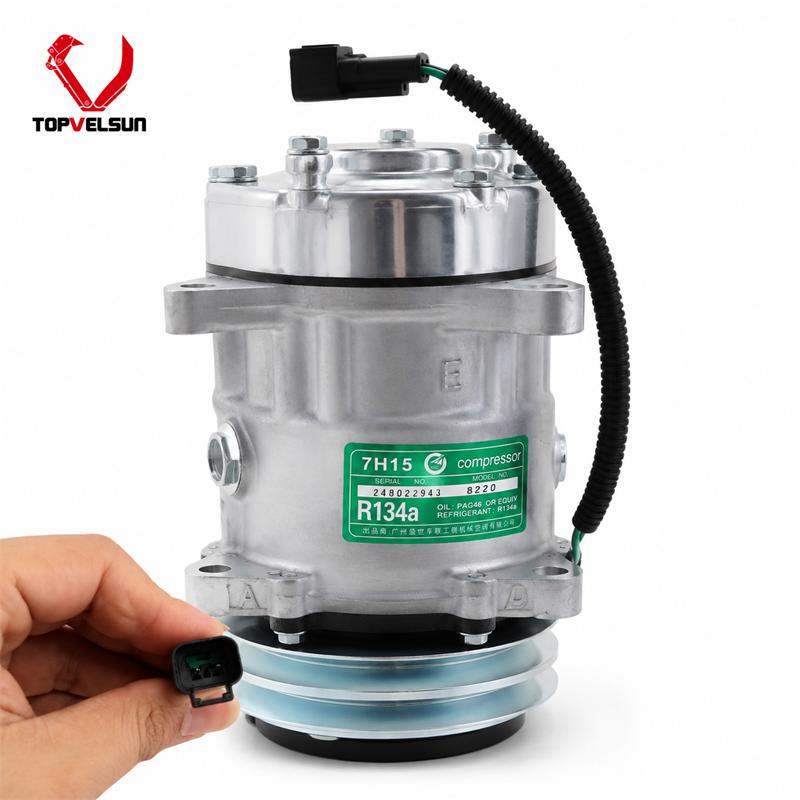

The 0631102732 is a new aftermarket 24V air-conditioning compressor for Volvo EC140, EC210, EC260 and EC290 excavators. It uses R134a refrigerant and PAG46 or equivalent compressor oil.

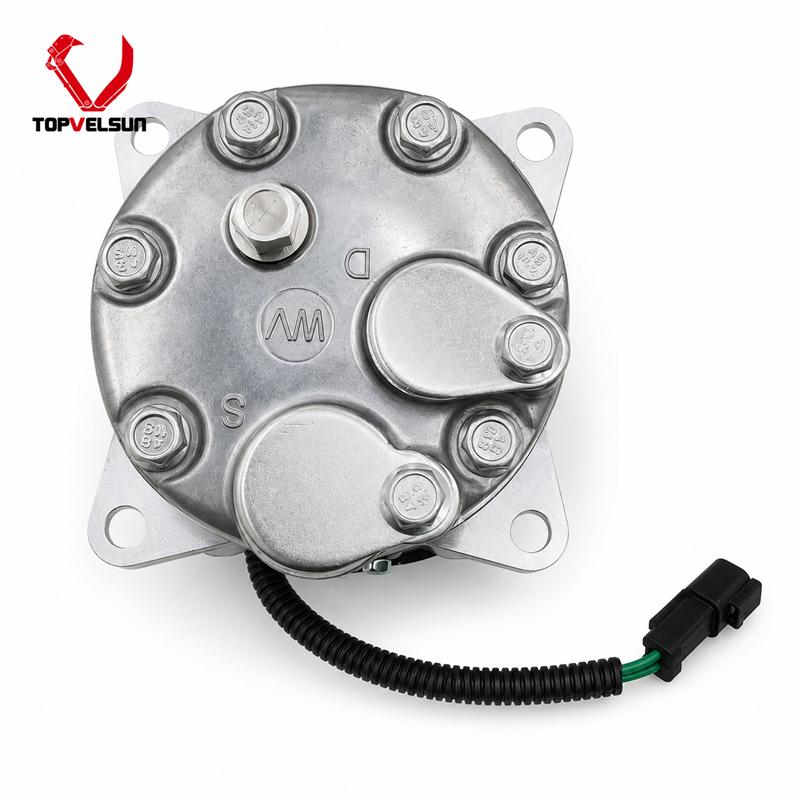

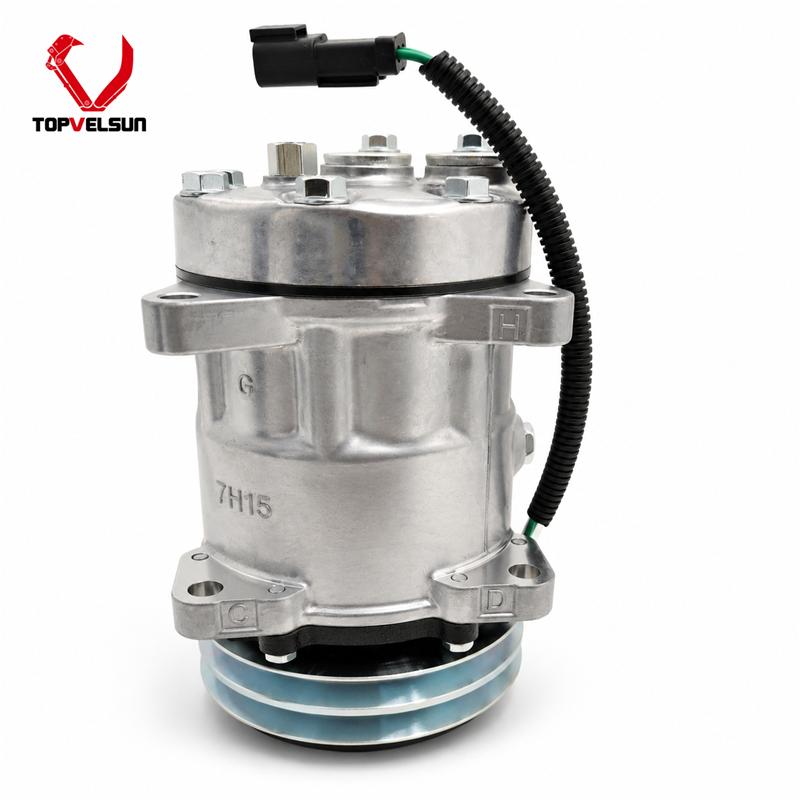

The compressor is supplied with an electromagnetic clutch, a 2-groove pulley and an electrical connection. It circulates and compresses refrigerant through the excavator cab air-conditioning system to support stable cooling during operation.

Fitment Checks Before Installation

Before ordering, confirm the excavator model and compare the 24V operating voltage, mounting-ear positions, pulley diameter, belt-groove arrangement, electrical connector, refrigerant ports and hose orientation with the existing compressor.

Provide the excavator serial number and clear photos of the original compressor label, mounting points, pulley, connector and refrigerant-port side when additional configuration verification is required.

Installation Precautions

Inspect the refrigerant circuit for contamination, damaged hoses and restrictions before installing the replacement compressor. The condenser, receiver drier, expansion component and refrigerant lines should be checked and serviced according to the condition of the original air-conditioning system.

Confirm the required compressor-oil quantity before installation. After assembly, evacuate the system, perform a leak test and charge it with the specified amount of R134a refrigerant. The compressor clutch must be connected to a 24V electrical system.

FAQ

Which Volvo excavators are compatible with this compressor?

The 0631102732 A/C compressor is suitable for Volvo EC140, EC210, EC260 and EC290 excavators. The mounting structure and electrical connection should still be compared before installation.

Is the 0631102732 compressor 12V or 24V?

This product is the 24V version. Do not install it in a 12V air-conditioning system.

Are the clutch and pulley included?

Yes. The compressor assembly includes an electromagnetic clutch and a 2-groove pulley as shown in the product photos.

Which refrigerant and compressor oil should be used?

The compressor is designed for R134a refrigerant and PAG46 or equivalent compressor oil. Follow the machine specifications for the correct charging quantities.

What is the warranty for this A/C compressor?

The standard warranty is 6 months. The refrigerant circuit should be inspected and cleaned before the replacement compressor is installed.
