4614911 4360509 Throttle Motor for Isuzu 6BG1 Engine Hitachi EX200-5 ZX200 Excavator

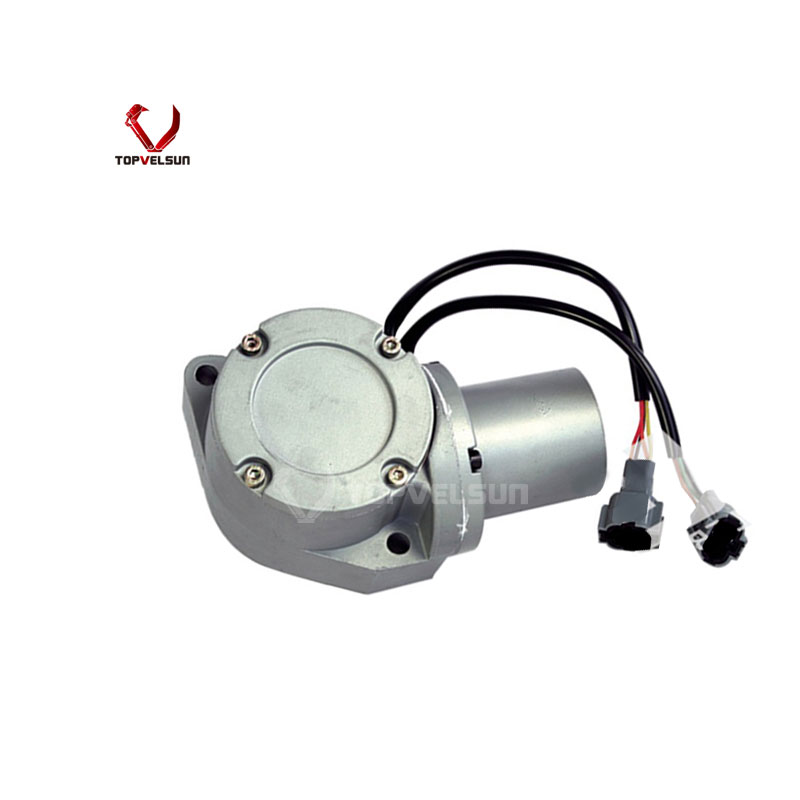

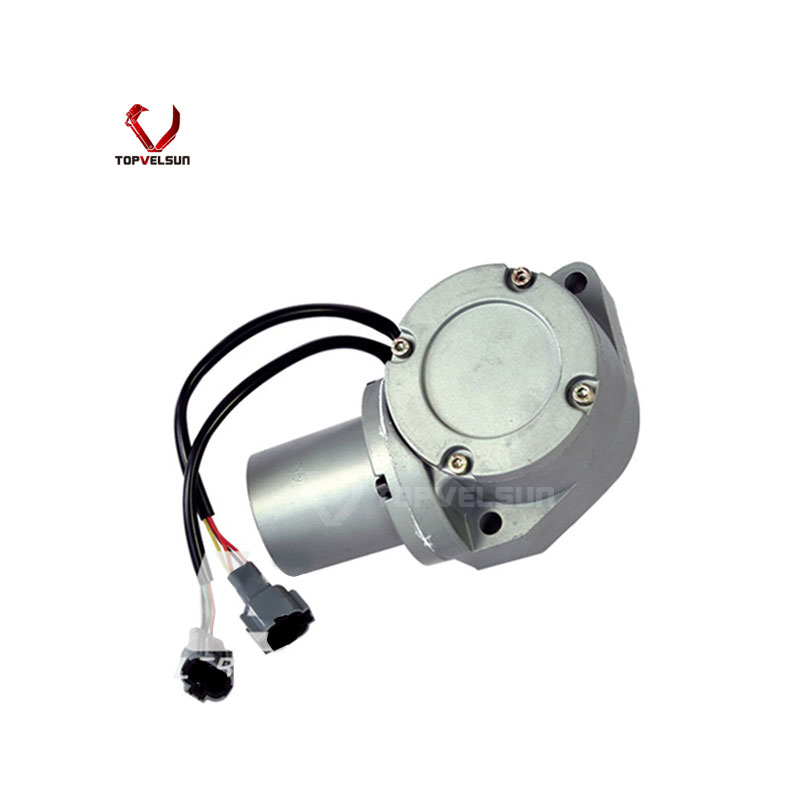

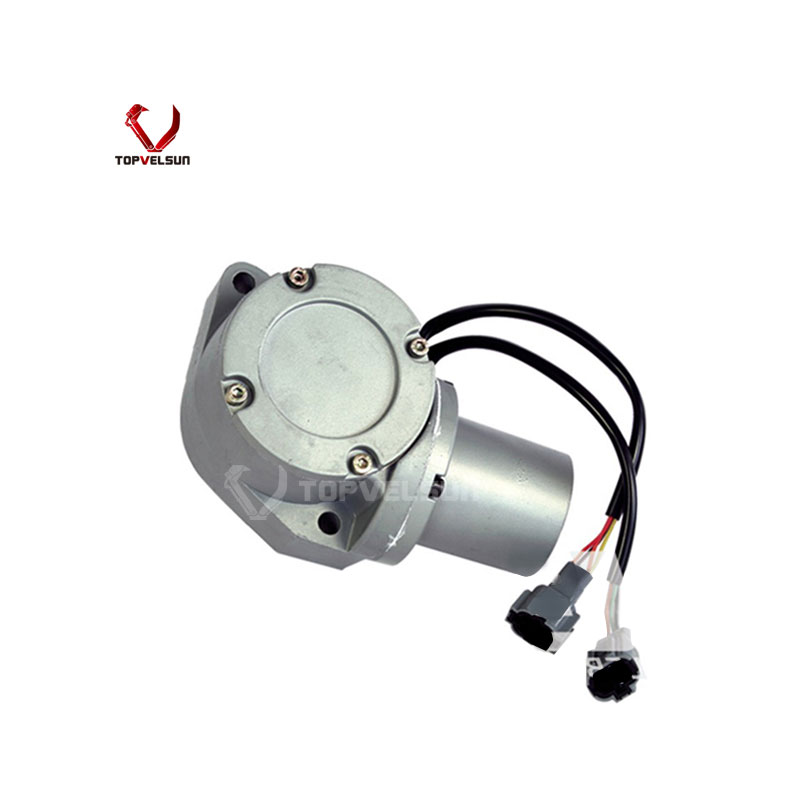

Premium 4614911 / 4360509 Throttle Motor for Hitachi Excavators

Restore precise engine RPM control and eliminate erratic surging with our heavy-duty aftermarket Throttle Motor (Governor Actuator). Based on official Hitachi EPC data, part numbers 4614911 and 4360509 are 100% identical and universally interchangeable. This unit is a direct, zero-modification replacement designed specifically for Hitachi EX-5 and ZAXIS (ZX) series excavators powered by Isuzu 6BG1 and 4BG1 diesel engines.

Advanced Technical Specifications

• Core Motor Assembly: Built with OEM-equivalent Nidec-style internal stepper motors (cross-ref: KP56RM2G-019) for zero-latency response.

• Coil Resistance: Factory-tested standard of 30Ω±2Ω (at 20℃) to match exact Hitachi ECM requirements.

• Position Sensor (Potentiometer): High-precision angular sensor with a 5V supply and 2kΩ±10% resistance, ensuring a linear feedback error of ≤0.5% over a 300° effective electrical angle.

• Rugged Construction: IP65 dust/waterproof die-cast aluminum housing, engineered to survive extreme engine bay temperatures (-40℃ to +125℃) and 15g vibrations.

• Wiring Harness: Dual OEM-spec waterproof DEUTSCH connectors (4-pin motor drive, 3-pin position sensor) pre-wired for plug-and-play installation.

Hitachi Official Fault Codes & Troubleshooting Guide

Based on extensive field testing and diagnostic data compiled by the Topvelsun engineering team, we have identified the following definitive troubleshooting steps for Hitachi EX and ZX series throttle motor failures. check the throttle motor wiring, connector condition, power supply, signal voltage, and coil resistance. A normal resistance reading should be around 30Ω. If resistance is abnormal, movement is inconsistent, or the motor cannot respond to control signals, replacement may be required.

Professional Diagnostic Steps Before Replacement

1. Dead Motor / No Movement (E02 / E05 Codes)

Diagnosis: First, check the 10A throttle motor fuse in the cab. If good, disconnect the motor and measure the resistance across the drive coils using a multimeter. The standard value is 30Ω±2Ω. An infinite reading means the coil is burnt; a much lower reading indicates an internal short. Both require complete motor replacement.

2. Surging RPMs / Hunting (E06 Code)

Diagnosis: This is a classic symptom of a failing internal potentiometer. Using a diagnostic scanner, monitor the live throttle angle voltage. As you move from idle to full throttle, the voltage should sweep linearly between 0.5V and 4.5V. Any dead spots, drops, or erratic jumping means the sensor is worn out, requiring immediate replacement of the assembly.

3. Binding / Mechanical Noise / Sticking

Diagnosis: If the motor attempts to move but stutters or grinds, the internal gearbox or bearings have failed. Ensure the external throttle linkage and ball joints are clean and lubricated. If the external linkage moves freely but the motor grinds, internal gear failure has occurred.

Installation Warning: Disconnect the negative battery terminal before installation to prevent ECM damage. Torque the 3 mounting bolts to exactly 8±2 N·m. Over-tightening will distort the housing and bind the internal gears. After installation, an ECM throttle calibration using a diagnostic tool is highly recommended for optimal performance.

FAQ

Q: Are part numbers 4614911 and 4360509 interchangeable?
A: Yes, they are 100% fully interchangeable based on Hitachi global EPC data. There is no difference in fitment or function.

Q: Which excavator models use this throttle motor?
A: It fits the Hitachi EX-5 and ZAXIS (ZX) series, specifically models like EX200-5, ZX200, ZX220, ZX230, and ZX240.

Q: Does this actuator fit my engine?
A: This part is perfectly compatible with excavators powered by the Isuzu 6BG1 and 4BG1 diesel engines.
