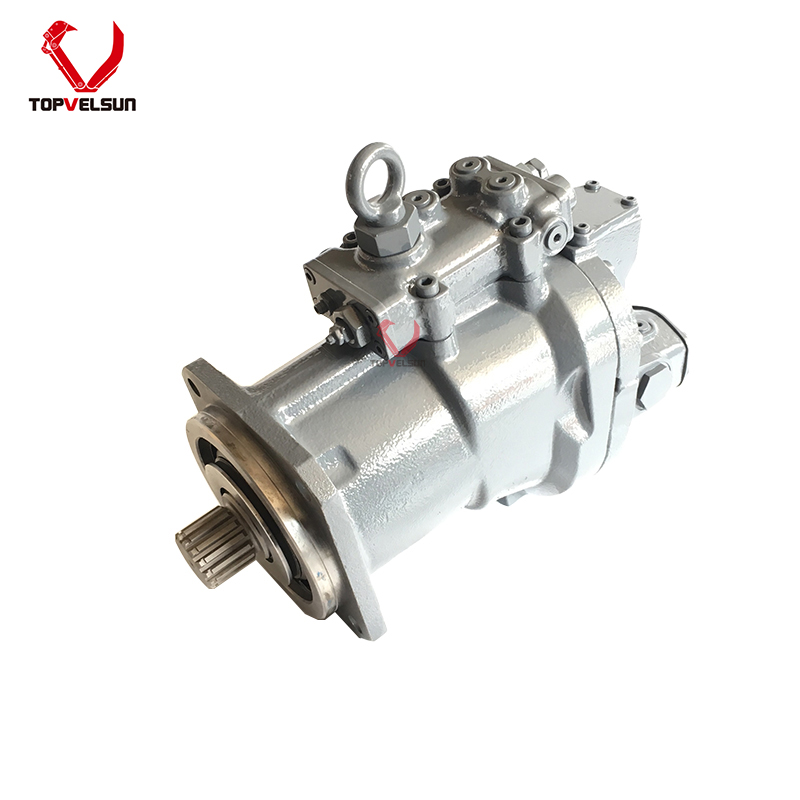

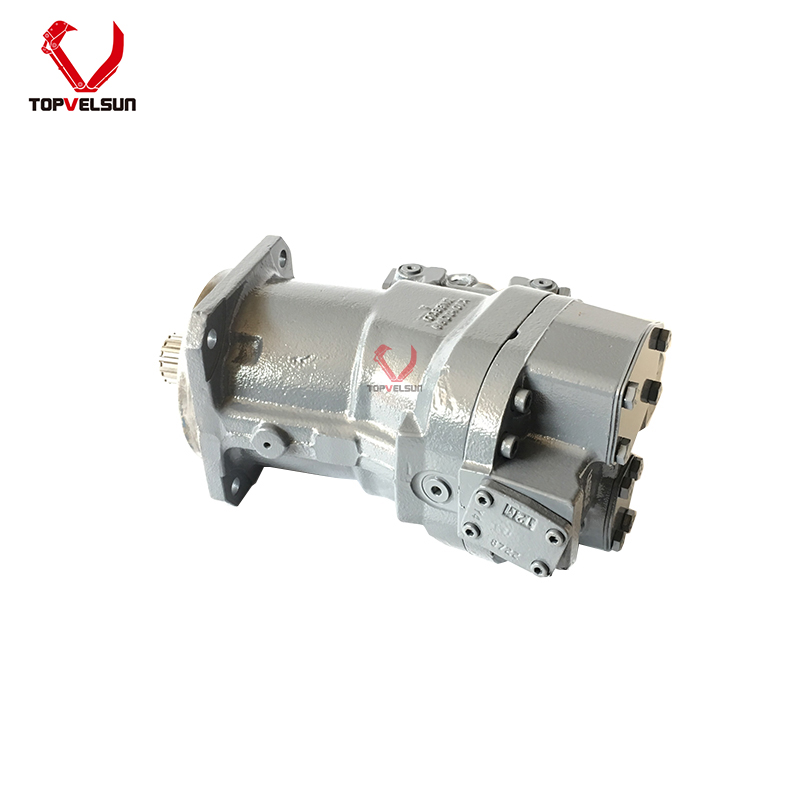

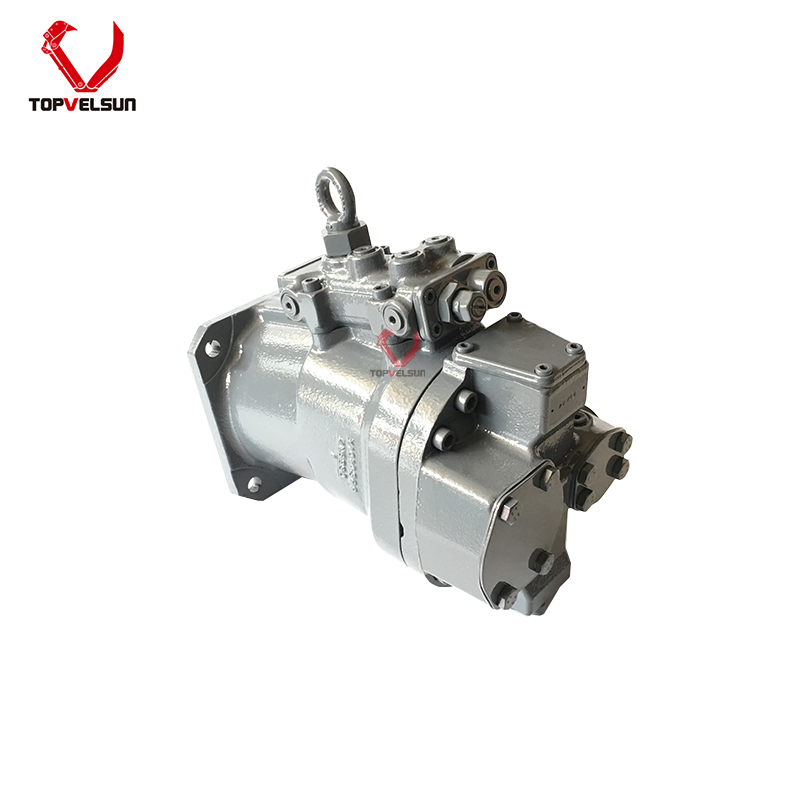

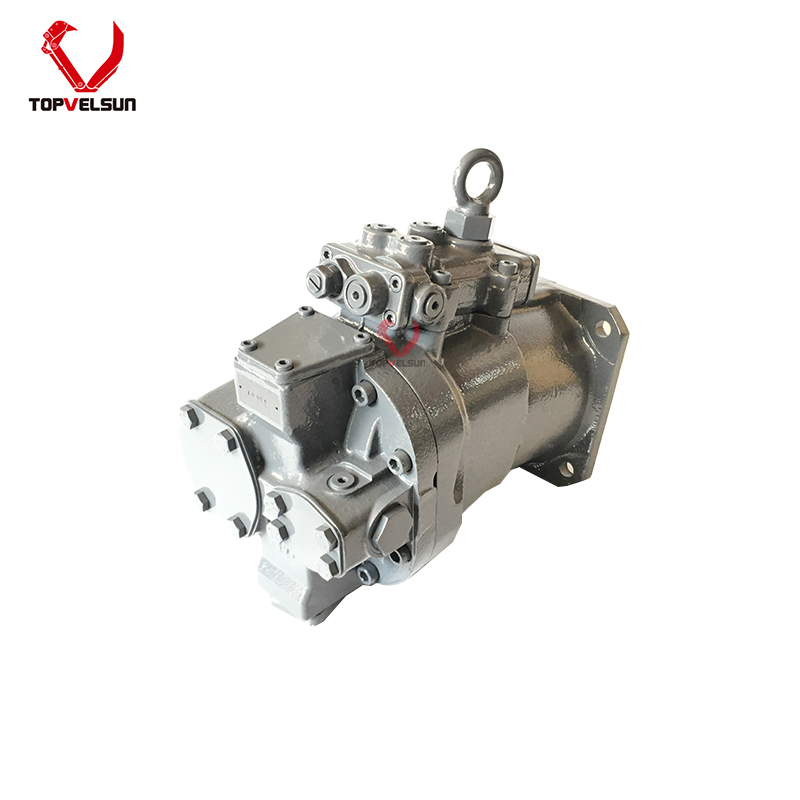

HPV145 9260322 Main Hydraulic Piston Pump for Hitachi ZX330-3 ZX350-3

Common Faults & Troubleshooting for HPV145 (9260322 / 9260321) Hydraulic Piston Pump

[Product Description / Content]When operating Hitachi ZX330-3 and ZX350-3 excavators, diagnosing main hydraulic pump issues accurately can save thousands in downtime. The following are the most common warning signs and troubleshooting solutions for the HPV145 hydraulic piston pump:

• Abnormal Noise (Banging, Knocking, or Chattering): Often misdiagnosed as mechanical failure, these sounds typically indicate cavitation caused by trapped air in the pump housing.

• Troubleshooting: Always remove the bleed plugs (usually marked in red or green on top of the pump or regulator housings) to purge trapped air. Additionally, inspect the hydraulic tank breather check valve; a faulty breather valve will cause abnormal pump whining under heavy load.



• System Overheating (Fluid Temp Exceeding 82°C / 180°F): Operating above 82°C will rapidly degrade internal pump seals and tolerances. This is usually caused by internal fluid bypassing due to worn rotary groups, or a severe drop in hydraulic pressure.



• Weak Functions & Mis-tracking: If the final drive motors feel weak or boom movements are sluggish, check the hydraulic return filters immediately.

• Troubleshooting: Inspect the filter elements. The presence of brass or steel shavings, or a collapsed filter element, is a definitive sign of internal pump deterioration requiring the immediate replacement of your 9260322 assembly.

HPV145 (Electronic Control) Fitment Details

This HPV145 pump is specifically designed for the ZAXIS-3 series. It includes the necessary electro-proportional control valves required for seamless integration with the Hitachi computer system.

FAQ

Q: Does this pump include the solenoids?

A: Yes, our HPV145 assembly comes fully integrated with premium control solenoids, matching the 9260322 configuration for a "plug-and-play" installation.
