High-Displacement HP2D25-G2SP-21.0/11-XR Hydraulic Pump Assembly

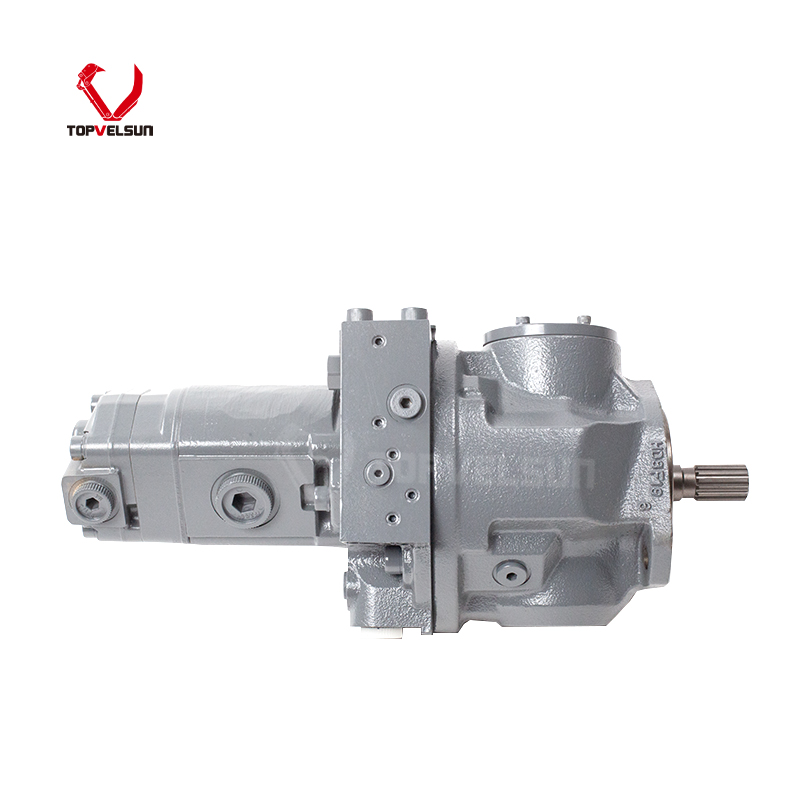

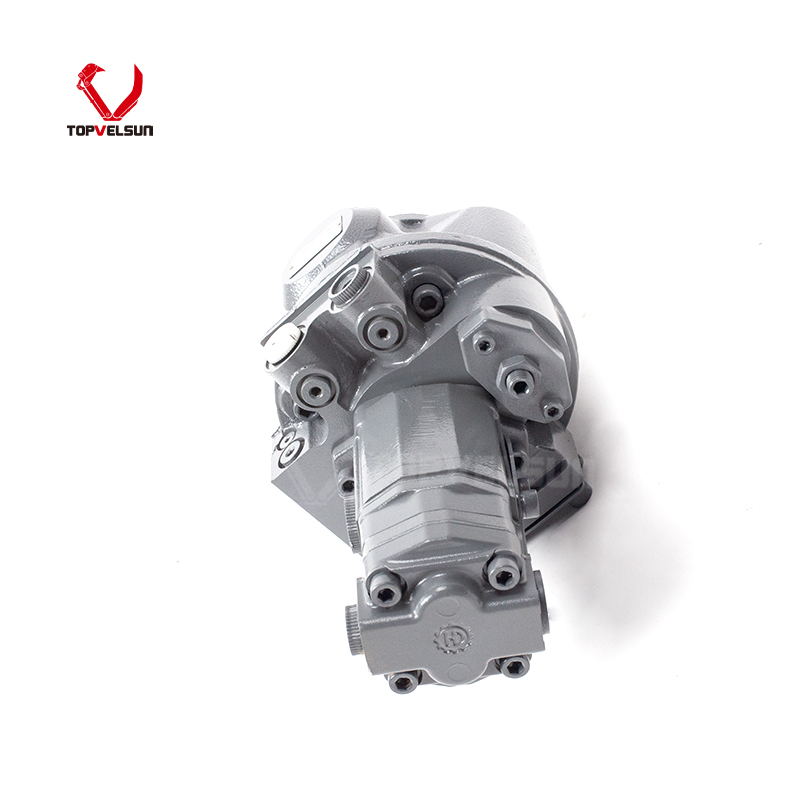

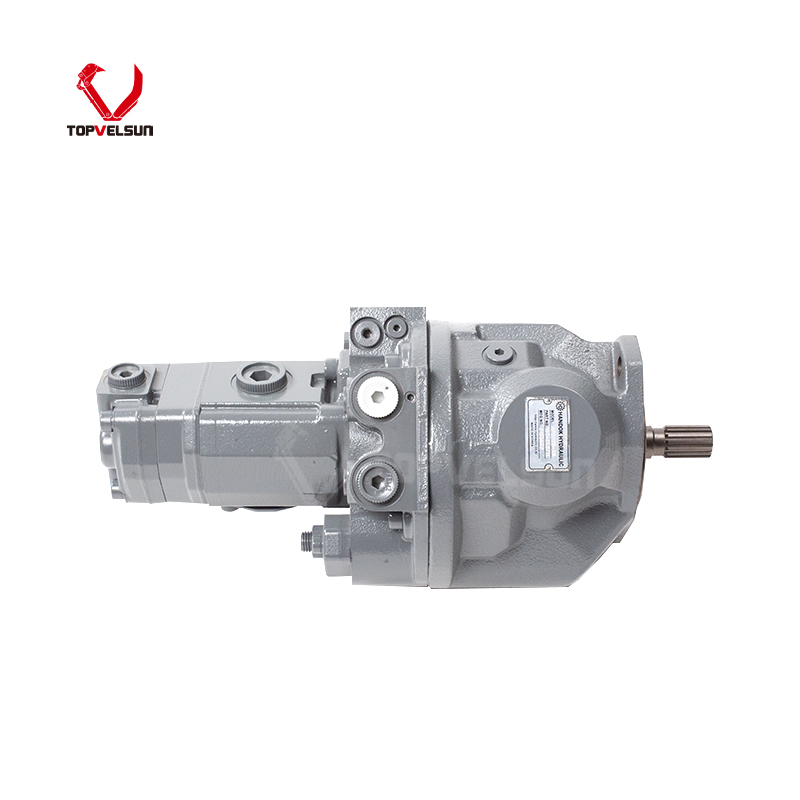

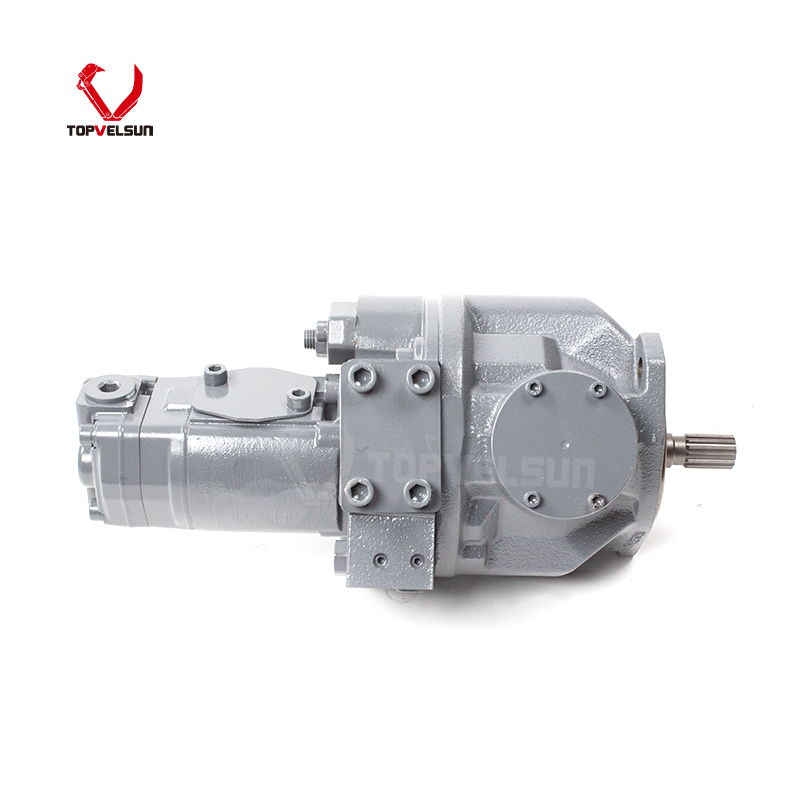

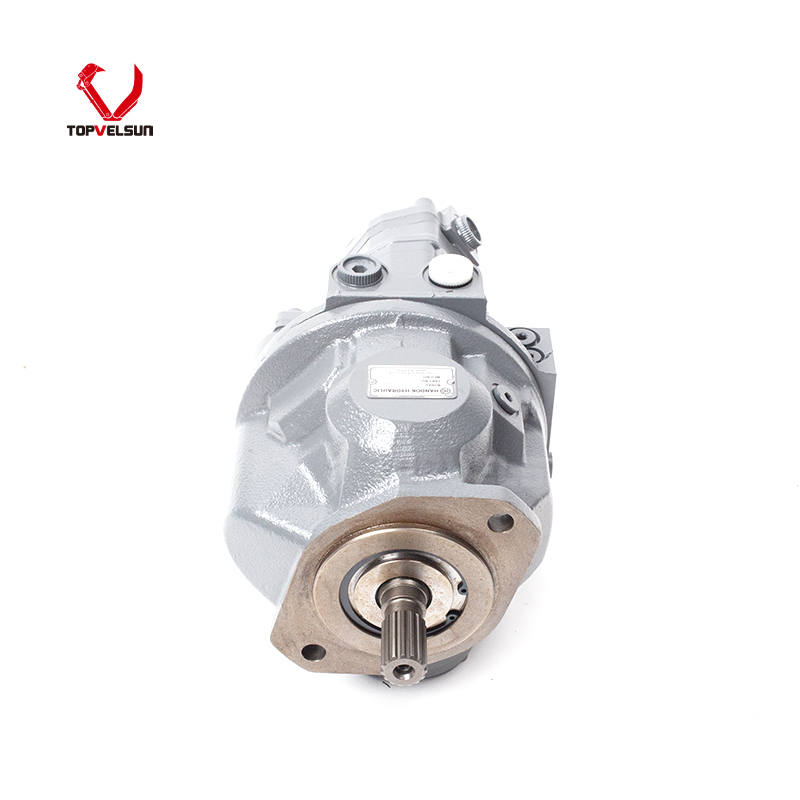

HP2D25-G2SP-21.0/11-XR Hydraulic Main Pump Assembly

The HP2D25-G2SP-21.0/11-XR hydraulic main pump assembly is supplied for excavator hydraulic system repair. It is commonly searched as HP2D25-G2SP-21.0/11-XR, HP2D25-G2SP-21/11-XR, 05665, hydraulic main pump, hydraulic pump assy, piston pump assembly or excavator main pump for 15-ton class machine references.

This page focuses on HP2D25-G2SP-21.0/11-XR as the main pump model. Final fitment should be confirmed by the old pump nameplate, shaft type, tooth count, front flange, rear flange, gear pump configuration, regulator position, oil port layout and machine information before ordering.

Equipment Reference and Fitment Notes

This hydraulic pump is positioned for 15-ton class excavator hydraulic system repair. Because hydraulic pump fitment can vary by machine version, pump configuration, shaft specification, gear pump arrangement and regulator setting, equipment tonnage alone should not be used as the only fitment proof.

Before ordering, compare the removed pump with the replacement pump carefully. Photos of the old pump nameplate, shaft side, mounting flange, gear pump side, regulator side, oil ports and complete pump body are useful for confirmation.

If the machine model is available, please provide the machine brand, model, serial number and old pump photos together. This helps confirm whether the HP2D25-G2SP-21.0/11-XR pump assembly matches the original hydraulic system layout.

Pump Model and Reference Notes

HP2D25-G2SP-21.0/11-XR is the main model number of this product page. It should stay visible in the SEO Title, H1, top parameters, first paragraph, product body and image ALT text.

05665 can be used as a checking reference for this hydraulic pump direction. The simplified writing format HP2D25-G2SP-21/11-XR may also be used by buyers when searching, but the full model HP2D25-G2SP-21.0/11-XR should remain the primary page signal.

Do not mix nearby pump models such as HP2D25-G2SP-16.8/6.5-XR, HP2D25-G2SP-16.8/6.5-SR, HP2D25-G2SP-21.0/6.5-XR, HP2D28-G2SP-21.0/11-XR or HP2D36-G2SP-21.0/11-XR into the top parameter area unless the old pump nameplate and physical configuration confirm interchange. Similar HP2D series pumps can vary by displacement, shaft, gear pump, regulator and oil port layout.

How to Confirm the Correct Hydraulic Pump

Hydraulic pumps can look similar from the outside, but small differences in shaft type, tooth count, flange size, port direction and regulator structure may affect installation and working pressure. Please compare the removed pump before ordering.

• Confirm whether the old pump model is HP2D25-G2SP-21.0/11-XR or HP2D25-G2SP-21/11-XR.

• Check whether the old pump has reference number 05665 on the nameplate or supplier record.

• Compare the shaft type, tooth count, shaft length and rotation direction.

• Check the front flange, rear flange, mounting hole position and gear pump configuration.

• Confirm the main oil port size, pilot port position, drain port layout and regulator position.

• Send photos of the old pump nameplate, shaft side, port side, regulator side and machine nameplate before quotation if you are not sure.

Common Hydraulic Pump Failure Symptoms

A hydraulic main pump may need inspection or replacement when the machine has weak hydraulic power, slow operation, abnormal pump noise, unstable pressure, oil overheating, heavy internal leakage, poor combined movement, pressure drop under load or metal particles in hydraulic oil.

Before replacing the pump, check hydraulic oil level, oil cleanliness, suction line, return filter, pilot pressure, relief valve setting, regulator control and related hydraulic components. Some hydraulic problems may be caused by system contamination, control valve leakage or pilot signal issues rather than the pump itself.

If the old pump failed because of contaminated oil, blocked filter, air suction, poor lubrication or incorrect pressure setting, the root cause should be corrected before installing the replacement pump. Otherwise, the new pump assembly may fail again.

Installation and Testing Notes

Before installation, clean the hydraulic system and inspect the oil tank, suction hose, return filter and pilot lines. Do not install the replacement pump into a contaminated hydraulic system.

After installation, fill and bleed the pump according to the repair procedure. Do not run the pump dry. Check oil leakage, abnormal noise, pilot pressure, main pressure and machine movement before full-load operation.

If the pump starts normally but the machine movement is still weak or unstable, inspect the regulator control, pilot circuit, relief valve, control valve and hydraulic motor load before assuming the new pump is defective.

Buying Notes for Repair Shops and Parts Distributors

For repair shops, this HP2D25-G2SP-21.0/11-XR hydraulic main pump is suitable for hydraulic system repair when the old pump is worn, noisy, leaking internally or unable to maintain working pressure.

For parts distributors, it can be supplied as an HP2D25-G2SP-21.0/11-XR hydraulic pump assembly reference for 15-ton class excavator repair demand. Topvelsun supports small repair orders and bulk inquiries. Please send the required quantity, old pump model, machine model, serial number and photos of the old pump from multiple angles.

FAQ

What is the main product on this page?

This page is for the HP2D25-G2SP-21.0/11-XR hydraulic main pump assembly used for excavator hydraulic system repair.

Is HP2D25-G2SP-21/11-XR the same search format?

HP2D25-G2SP-21/11-XR is a simplified writing format of HP2D25-G2SP-21.0/11-XR. The full model should be used for final confirmation.

What does reference number 05665 mean?

05665 can be used as a checking reference for this HP2D25-G2SP-21.0/11-XR hydraulic pump direction. The old pump nameplate and physical pump configuration should still be checked before ordering.

Can this pump be confirmed only by 15-ton excavator class?

No. The 15-ton class description is only a reference. Hydraulic pump fitment should be confirmed by the old pump nameplate, shaft, flange, gear pump configuration, regulator position and oil port layout.

Can nearby HP2D25 or HP2D28 pump models be used as replacements?

Nearby HP2D models should not be treated as automatic replacements. Similar model names may have different displacement, shaft, regulator, gear pump and oil port configurations.

What photos should I send before ordering?

Please send photos of the old pump nameplate, shaft side, front flange, rear side, oil ports, regulator side, gear pump side and machine nameplate. These photos help confirm whether HP2D25-G2SP-21.0/11-XR is the correct pump assembly.
