5316753 4948361 3927780 Flywheel Housing for Cummins 6CT8.3

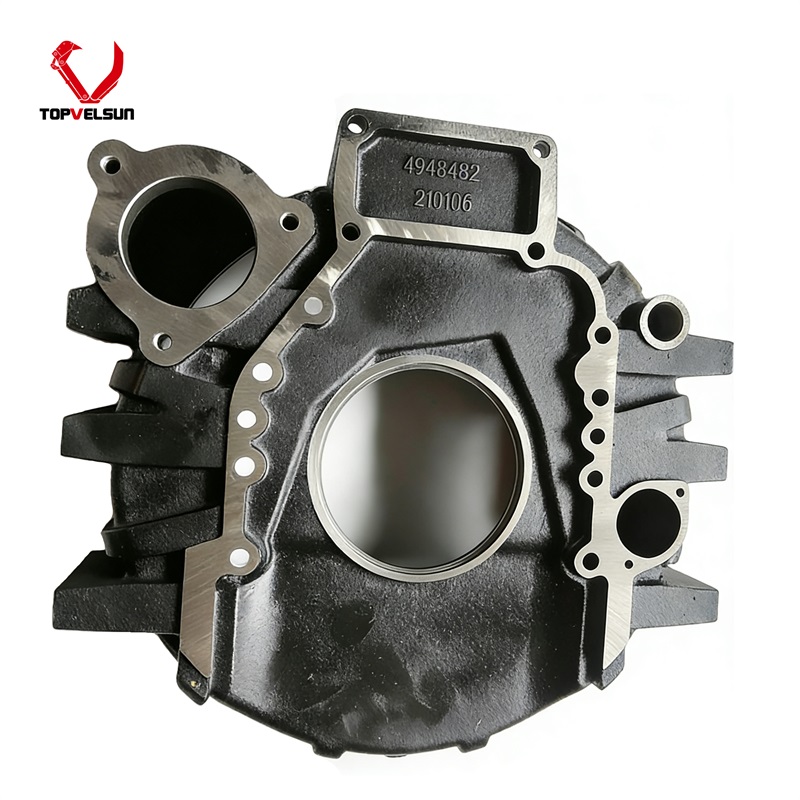

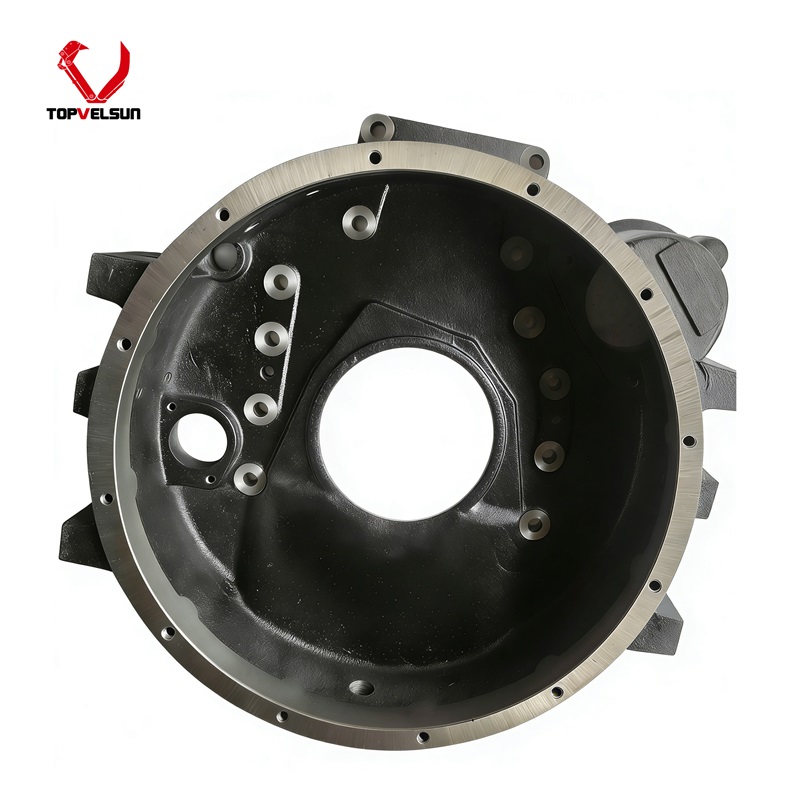

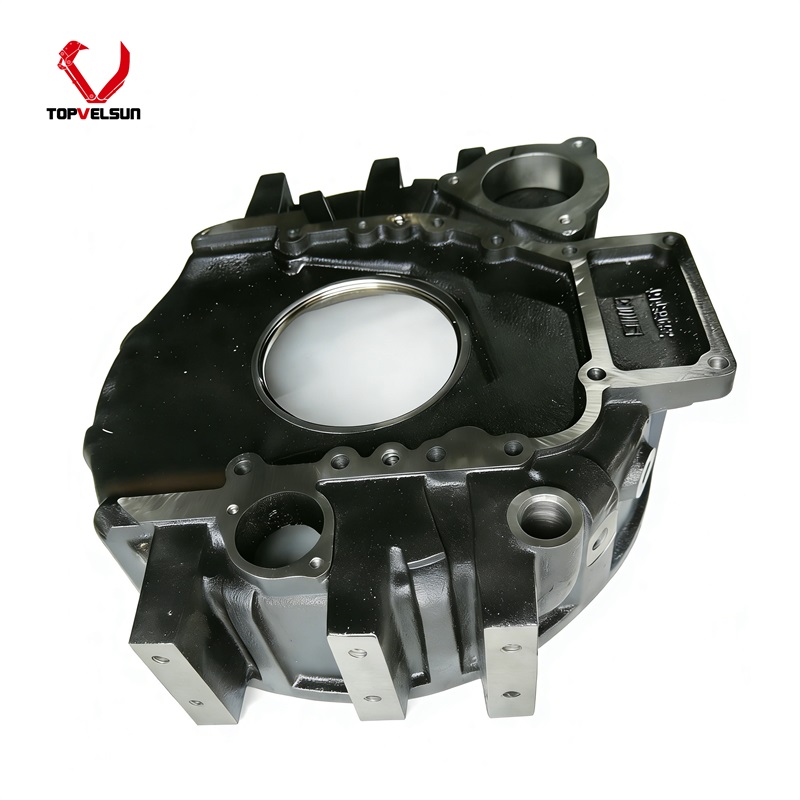

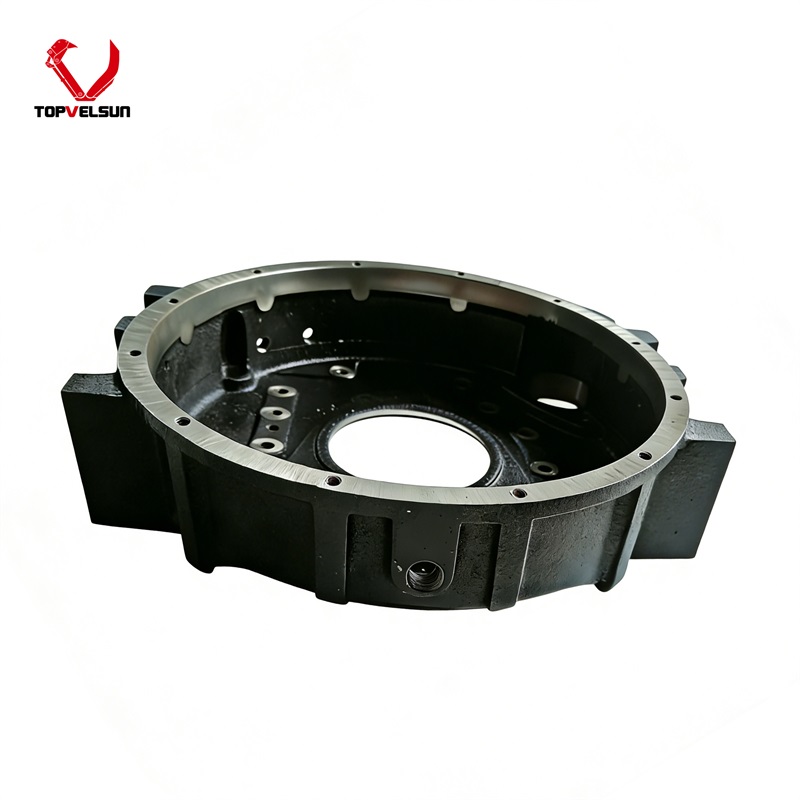

5316753 Flywheel Housing for Cummins 6CT8.3 C8.3 Engine

The 5316753 flywheel housing is used for Cummins 6CT8.3 and C8.3 engine rear housing applications. It is also searched as a bell housing, engine flywheel housing, rear flywheel housing or housing flywheel for Cummins 8.3 liter C engine service.

This page focuses on 5316753 as the main part number, with 4948361 and 3927780 used as catalog checking references. Before ordering, the removed housing should be checked by engine serial number, SAE housing size, starter position, bolt pattern, rear seal area, mounting face and old housing photos.

Cummins 6CT8.3 Flywheel Housing Application

The main engine reference for this flywheel housing page is the Cummins 6CT8.3 / C8.3 engine group. Cummins public product information describes 5316753 as a flywheel housing used primarily on 8.3 liter C engines.

Engine family names should be used as checking references only. Flywheel housings can vary by engine serial number, SAE housing size, starter mounting position, transmission connection, rear seal arrangement and equipment configuration.

Part Number and Reference Notes

The main part number for this page is 5316753. The numbers 4948361 and 3927780 may appear together in buyer searches and aftermarket catalog references for Cummins 6CT8.3 / C8.3 flywheel housing applications.

These references should support part checking, not replace physical confirmation. Do not assume interchange only by part number list if the old housing, starter position or SAE mounting face is different.

For this product page, 5316753 should remain the primary search signal. 4948361 and 3927780 can be kept as reference numbers because they already appear in the URL and buyer search behavior.

About Komatsu S6D114E SAA6D114E Reference

Some inquiries may mention Komatsu S6D114E or SAA6D114E together with 6CT8.3-related flywheel housing references. This should be treated carefully because Komatsu engine catalogs may use their own flywheel housing groups and part numbers.

If the machine is Komatsu-engine powered, final confirmation should be made by engine model, machine serial number, old housing photos, starter position and bolt pattern. This page should not be used as a general Komatsu SAA6D114E flywheel housing page unless the old housing confirms the same configuration.

Flywheel Housing Function

The flywheel housing, also called bell housing, is installed at the rear side of the engine. It surrounds the flywheel area and provides the mounting interface between the engine block and the transmission, clutch housing, torque converter or equipment-side drive connection.

Correct flywheel housing selection is important because the starter position, SAE size, bolt pattern, pilot diameter and rear seal area must match the original engine and machine configuration. A similar-looking housing may not fit if these details are different.

How to Identify the Correct 5316753 Housing

• Check whether the old housing number matches 5316753, 4948361 or 3927780.

• Confirm the Cummins engine model, especially 6CT8.3 or C8.3 engine references.

• Check the engine serial number before confirming replacement.

• Compare the SAE flywheel housing size and transmission mounting face.

• Compare starter mounting position, starter opening direction and bolt hole layout.

• Check the rear seal area, pilot diameter and flywheel clearance.

• Send inside and outside photos of the removed housing when the casting number is unclear.

Common Damage and Replacement Signs

• Cracks around the mounting face, starter opening or rear support area.

• Broken or damaged bolt holes caused by vibration, over-tightening or previous repair.

• Starter alignment problems caused by worn or damaged starter mounting area.

• Oil leakage near the rear seal area when the housing surface or seal seat is damaged.

• Abnormal vibration or misalignment between engine and driven equipment.

• Incorrect previous installation causing bolt pattern mismatch or mounting stress.

Troubleshooting Before Replacement

Before replacing the 5316753 flywheel housing, inspect the complete rear engine mounting area. Housing damage may be related to engine mount failure, driveline misalignment, starter installation problems, loose bolts or previous impact damage.

• Check engine mounts and rear support condition before installation.

• Inspect the flywheel, starter ring gear and starter mounting area.

• Check whether the driven equipment or transmission side is correctly aligned.

• Inspect bolt threads, dowel positions and mounting surface flatness.

• Confirm whether damage is caused by the housing itself or by external stress and misalignment.

Installation and Maintenance Notes

• Clean the engine block rear face and housing mounting surface before installation.

• Check dowel pins, bolt holes and mounting face alignment before tightening.

• Use correct fasteners and tightening sequence according to service requirements.

• Check rear seal condition and replace sealing parts if needed during housing installation.

• Confirm starter mounting position and flywheel clearance before final assembly.

• After installation, check for oil leakage, abnormal vibration, starter engagement and mounting bolt security.

Fitment Check Before Ordering

To reduce wrong orders, please send the old housing number, Cummins engine model, engine serial number, machine model, outside photo, inside photo, starter opening photo, mounting face photo, bolt pattern photo and any visible casting marks before quotation.

FAQ

Q: What is 5316753?

5316753 is a Cummins flywheel housing reference used for 8.3 liter C engine applications, commonly searched with Cummins 6CT8.3 and C8.3 engine references.

Q: Are 5316753, 4948361 and 3927780 the same?

These numbers may appear together in flywheel housing catalog references, but interchange should not be assumed without checking the old housing, engine serial number, SAE size, starter position and bolt pattern.

Q: Can this page be used for Komatsu SAA6D114E?

Komatsu S6D114E and SAA6D114E applications should be verified carefully because Komatsu engine catalogs may use different flywheel housing groups. Use the old housing photos and machine serial number for confirmation.

Q: What should be checked before ordering?

Check the old housing number, Cummins engine serial number, SAE housing size, starter position, bolt pattern, mounting face and rear seal area. Clear inside and outside photos are recommended.

Q: Why does flywheel housing fitment need photo confirmation?

Flywheel housings can look similar but differ in starter opening, SAE mounting size, bolt pattern, pilot diameter and rear seal arrangement. Photo confirmation reduces wrong orders.
