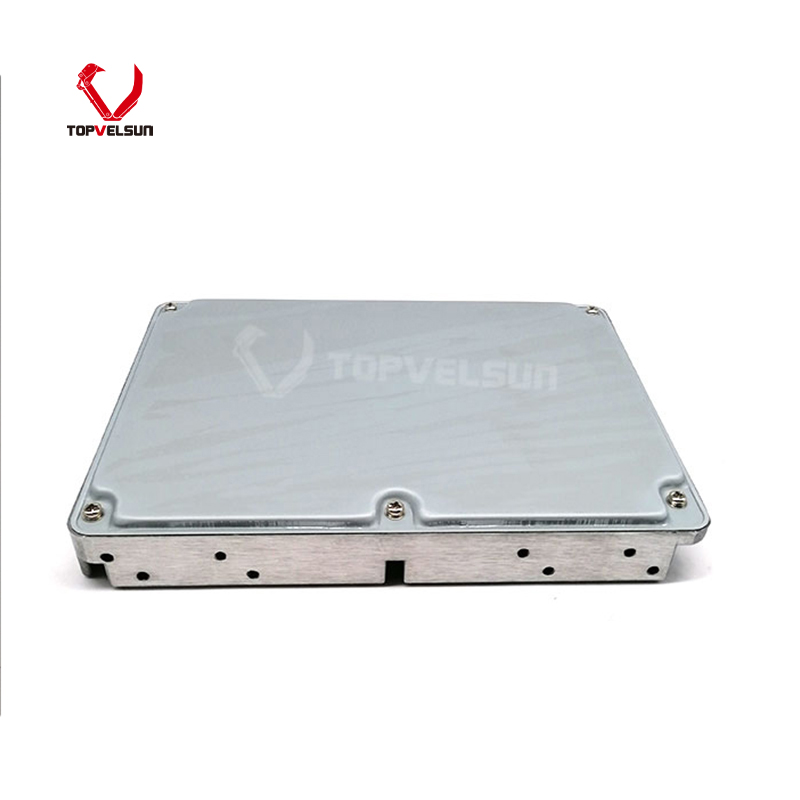

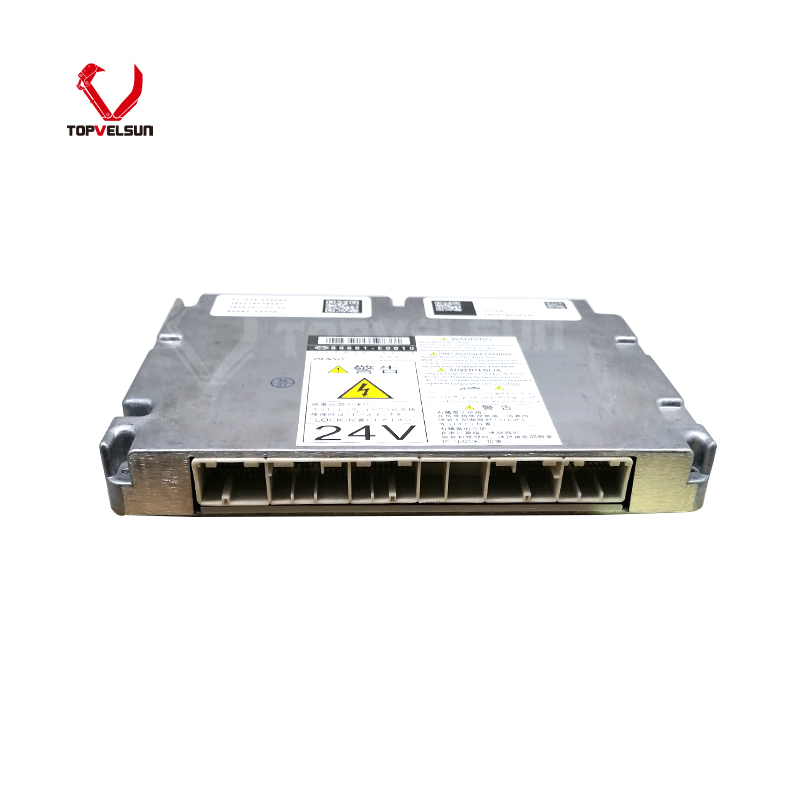

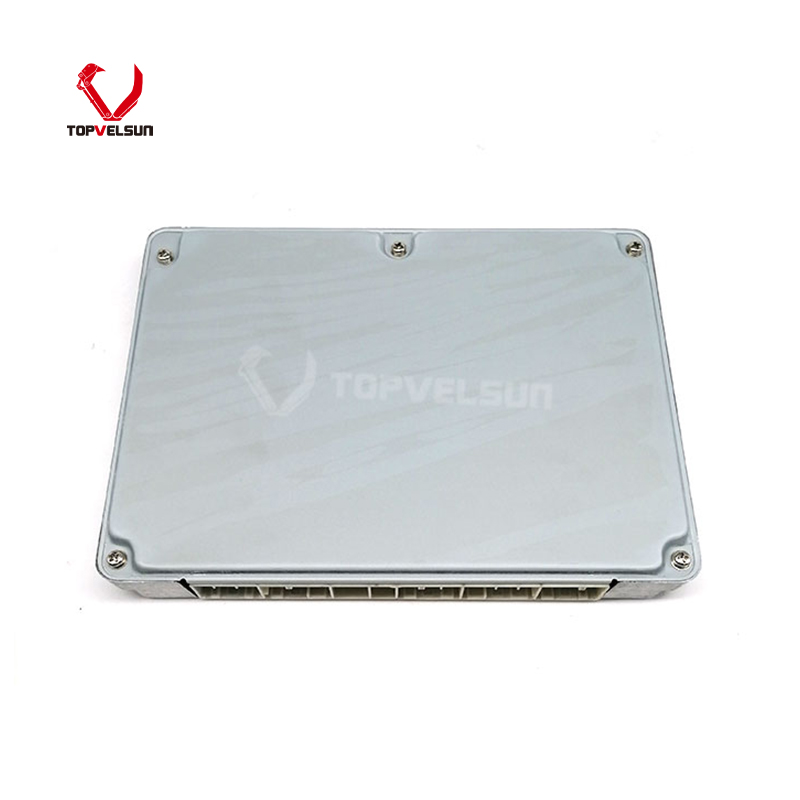

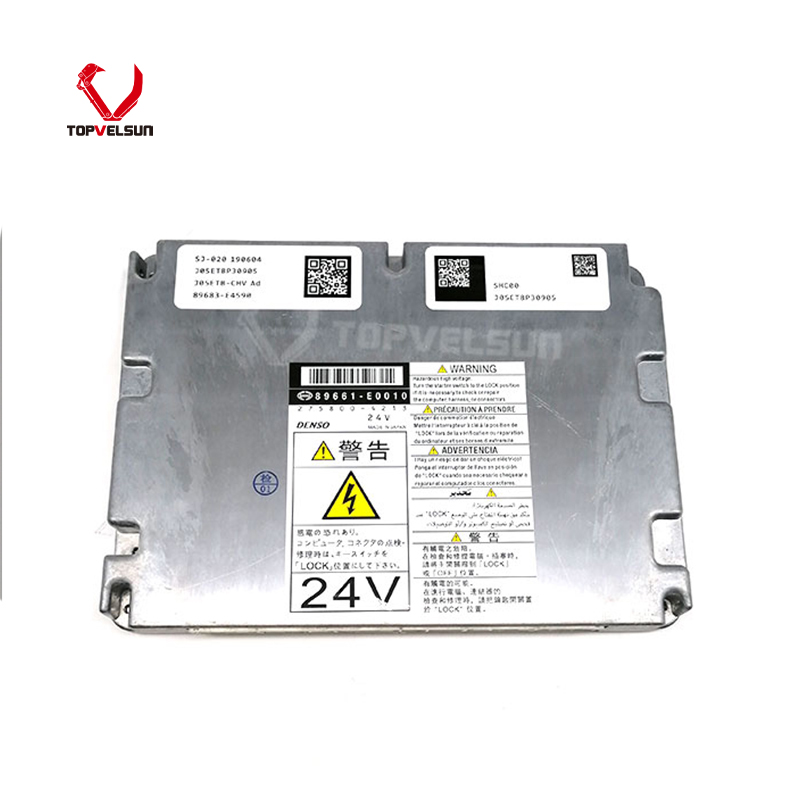

SK-8 SK200-8 SK330-8 ECU Controller YN22E00263S001 89661-E0010 89663-E0760A for Hino Engine J05E J08E

Programming and Label Verification

Hino reference: 89661-E0010 may appear on controller labels or supplier references for Hino engine applications.

Kobelco reference: YN22E00263S001 is commonly used as a Kobelco controller reference for SK-8 series excavator applications.

Denso reference: 89663-E0760A may refer to a Denso-labeled controller reference.

Important: controller programming status can vary by supplier and stock condition. Please confirm whether the unit is programmed, blank, or requires programming before ordering.

Machine Model References

Current page references include Kobelco SK200-8, SK210-8, SK210LC-8, SK250-8, SK260-8, SK290-8, SK330-8, SK350-8, SK460-8, SK480-8, SK485-8 and related SK-8 / SK-9 series references.

Some short-radius model references such as SK215SRLC or SK235SR may require additional verification. Please confirm by original controller label, connector layout and machine serial number.

Common Symptoms That May Require Controller Inspection

Intermittent machine faults: warning messages or operating issues appear during vibration, heat or machine movement.

Engine control issues: engine speed, throttle response or power output becomes unstable.

Hydraulic response problems: machine functions may respond slowly, incorrectly or intermittently if controller communication is unstable.

Communication faults: monitor display or CAN communication may become unstable when the controller, harness or connector has an issue.

No power or unstable signal: fuse, power supply, ground or wiring harness faults can imitate controller failure.

Fitment Check Before Ordering

Before ordering this Kobelco YN22E00263S001 / 89661-E0010 ECU controller, compare it with your original controller. Important confirmation points include the controller label, part number, connector quantity, connector shape, pin layout, mounting position and software or programming status.

For faster confirmation, please send clear photos of the original controller label, front housing, rear connector side, plug layout and machine model plate. This helps reduce wrong orders and confirms whether the controller matches your Kobelco SK-8 series excavator configuration.

Installation and Maintenance Notes

Disconnect machine power before removing or installing the ECU controller.

Do not pull directly on the wiring harness. Release connector locks before unplugging.

Inspect all connectors for bent pins, corrosion, water ingress and loose terminals.

Check fuse, power supply, ground and harness continuity before replacing the controller.

After installation, check monitor display, engine start-up, throttle response, communication status and fault-code status before returning the machine to work.

Ordering Information

Topvelsun supplies controllers, ECUs, MCUs, monitor panels, sensors, wiring harnesses and electrical components for Kobelco, Hino, Caterpillar, Komatsu, Hitachi, Hyundai, Volvo, Doosan and other heavy equipment brands. For this YN22E00263S001 / 89661-E0010 controller, please provide your machine model, serial number, original part number and connector photos before quotation.

FAQ

What is YN22E00263S001 / 89661-E0010 used for?

These part numbers are listed as ECU controller references for Kobelco SK-8 series excavator applications with Hino J05E / J08E engine references. Final fitment should be verified by the original controller label and connector layout.

Is 89663-E0760A always ready to install?

Not necessarily. Some Denso-labeled or blank controller units may require programming or configuration. Please confirm the programming status with the supplier before ordering.

Can this ECU be confirmed by machine model only?

No. ECU controllers may vary by serial number, connector layout, software version and engine configuration. Photos of the original controller are recommended before ordering.

What photos should I send for confirmation?

Please send photos of the original controller label, front and rear housing, all connectors, pin layout, machine model plate and engine plate if available.
