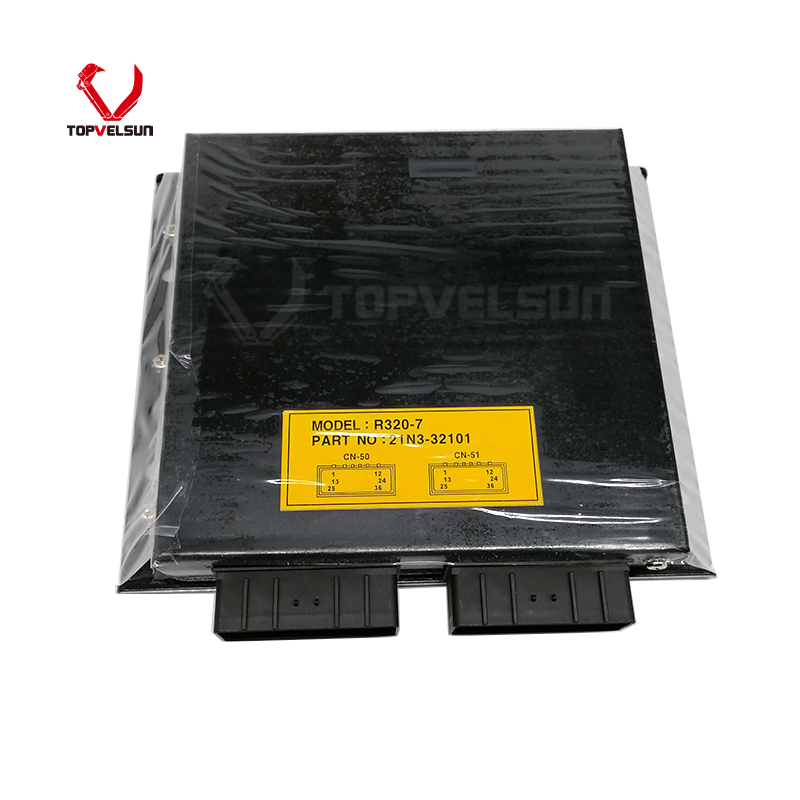

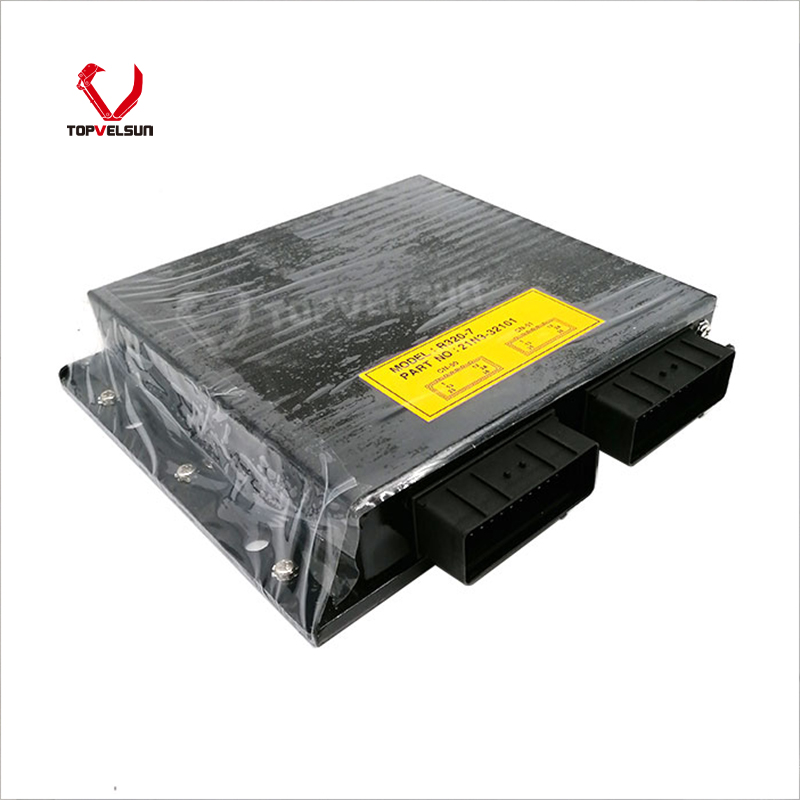

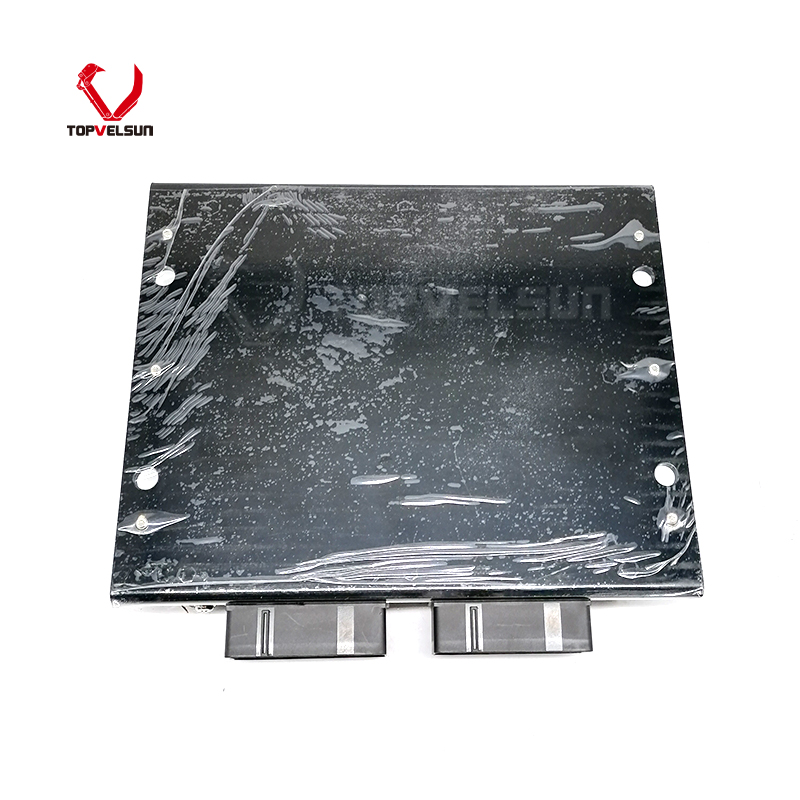

21N9-32101 Excavator Controller for Hyundai R320-7 R320LC-7 R330LC-7

21N9-32101 CPU Controller for Hyundai R320LC-7 Excavator

The 21N9-32101 CPU controller is supplied for Hyundai excavator electronic control system repair. It is commonly searched as 21N9-32101, 21N932101, 21N9-32100, 21N932100, Hyundai CPU controller, Hyundai MCU controller, R320LC-7 controller, R320-7 controller or R330LC-7 excavator controller.

This page focuses on 21N9-32101 as the main part number, with 21N9-32100 included as the ref cross number. Final fitment should be confirmed by the old controller number, controller label, connector layout, plug shape, pin count, machine model and electrical system configuration before ordering.

Machine and System Reference

Common machine references for this controller include Hyundai R320-7, R320LC-7 and R330LC-7 excavators. These models are used as matching references, but the controller label and connector layout should be checked before final confirmation.

The CPU controller is part of the excavator electronic control system. It receives input signals from sensors, switches and related electrical circuits, then supports control of machine functions according to the original excavator control logic.

Machine model alone is not enough for final confirmation. Hyundai excavators may use different controllers depending on machine series, serial range, software version, harness layout and previous repair history. The removed controller label is more reliable than the model name alone.

Part Number and Ref Cross Notes

21N9-32101 is the main identifying number of this product page. 21N932101 is the no-hyphen writing format and can be kept on the page for buyers who search without the dash.

21N9-32100 and 21N932100 are included as ref cross numbers for this Hyundai excavator controller direction. These numbers should stay related to this page when the old controller label, connector position and controller structure confirm the same application.

Do not mix unrelated Hyundai controller numbers into this page unless the controller label and connector layout are confirmed. Similar controllers may differ by software, internal program, plug layout, pin definition, machine version and working system configuration.

How to Confirm the Correct CPU Controller

Before ordering 21N9-32101, compare the removed controller carefully. Electrical controllers can look similar from the outside, but small differences in part number, connector layout or internal program may affect installation and operation.

• Confirm whether the old controller number is 21N9-32101 or 21N9-32100.

• Check whether the machine reference is Hyundai R320-7, R320LC-7 or R330LC-7.

• Compare the controller label, plug position and connector layout.

• Check the pin count, connector shape and mounting points.

• Confirm whether the machine harness and controller plug match the old unit.

• Send photos of the old controller label, front side, rear side, connector side, plug layout and machine nameplate before quotation if you are not sure.

Common Controller Failure Symptoms

A CPU controller may need replacement when the excavator has no response from related functions, abnormal warning codes, intermittent electrical faults, unstable machine operation, communication failure, sensor signal problems or no output control signal.

Before replacing the controller, check the battery voltage, fuse box, wiring harness, ground cable, sensor plugs, connector pins and related electrical circuits. Some problems may be caused by wiring damage, poor grounding, short circuit, water ingress or sensor failure rather than the controller alone.

If the old controller failed because of water ingress, unstable voltage, poor ground or short circuit, the root cause should be repaired before installing the replacement controller. Otherwise, the new controller may be damaged again after installation.

Installation and Testing Notes

Before installation, turn off the machine power and disconnect the battery according to service requirements. Compare the old controller and replacement controller before connecting the harness.

During installation, make sure each connector is clean, dry and locked securely. Do not force the plug if the connector shape or pin layout does not match.

After installation, check whether the machine starts normally and whether related functions respond correctly. If warning codes or abnormal functions remain, stop testing and recheck the old part number, wiring harness, voltage supply, grounding and machine control system.

Buying Notes for Repair Shops and Parts Distributors

For repair shops, this 21N9-32101 CPU controller is suitable for Hyundai excavator electronic control repair when the old controller is damaged, water-damaged, electrically failed or unable to provide stable control output.

For parts distributors, it can be supplied as a Hyundai R320-7, R320LC-7 and R330LC-7 excavator controller reference for heavy equipment repair demand. Topvelsun supports small repair orders and bulk inquiries. Please send the required quantity, old controller number, machine model and photos of the old controller from multiple angles.

FAQ

What is the main product on this page?

This page is for the 21N9-32101 CPU controller used for Hyundai excavator electronic control system repair.

Is 21N932101 the same search format as 21N9-32101?

21N932101 is the no-hyphen writing format of 21N9-32101. Buyers may search either format, so both formats can be kept on the page.

What is the ref cross number for this controller?

The ref cross number is 21N9-32100 / 21N932100. Please still confirm the old controller label, connector layout and machine information before ordering.

Which Hyundai models are common references?

Common references include Hyundai R320-7, R320LC-7 and R330LC-7 excavators. Final confirmation should still be based on the old controller number and connector layout.

Can I confirm this controller by machine model only?

No. Machine model is only a reference. Please check the old controller number, label, connector layout, plug shape, pin count and machine electrical configuration before ordering.

What photos should I send before ordering?

Please send photos of the old controller label, front side, rear side, connector side, plug layout and machine nameplate. These photos help confirm whether 21N9-32101 / 21N9-32100 is the correct controller.
