3938502 starter motor for Cummins 6CT8.3 engine

  • 3938502 starter motor for Cummins 6CT8.3 engine

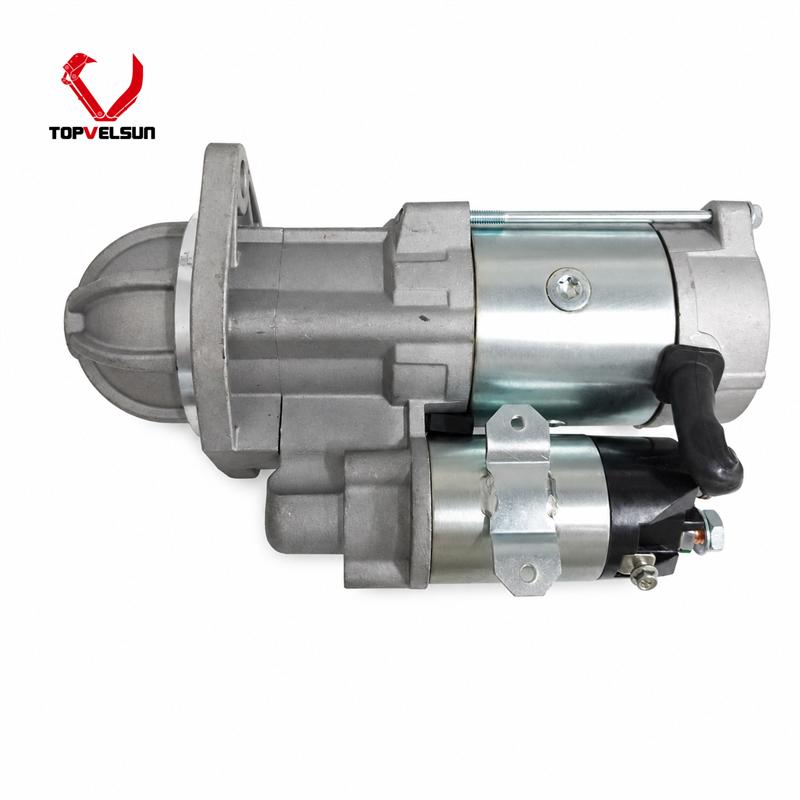

  • 3938502 24V 12T starter motor for Cummins ISC 8.3L

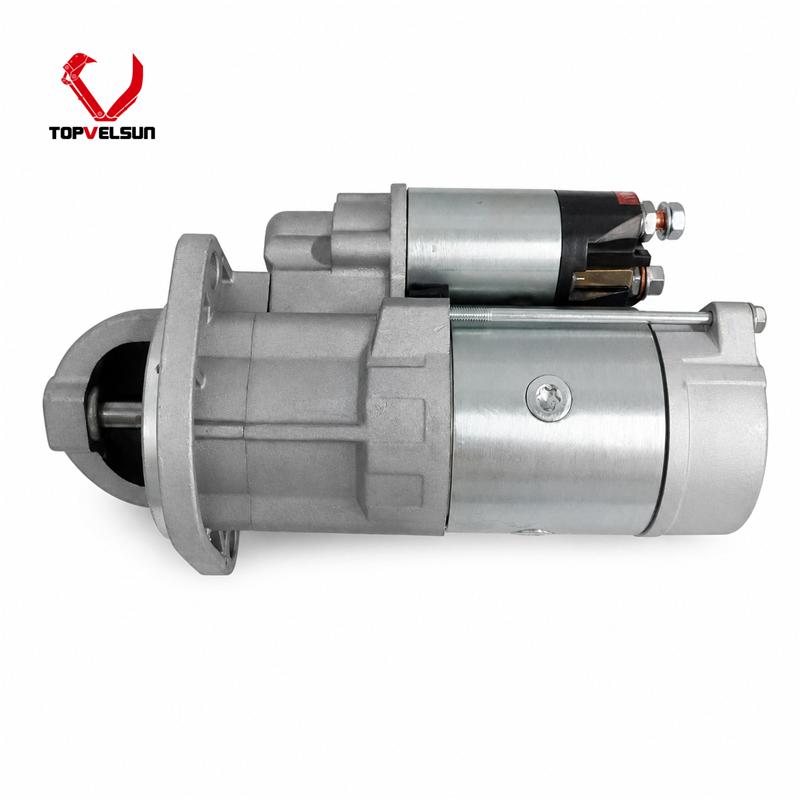

  • Cummins 3938502 starting motor drive gear view

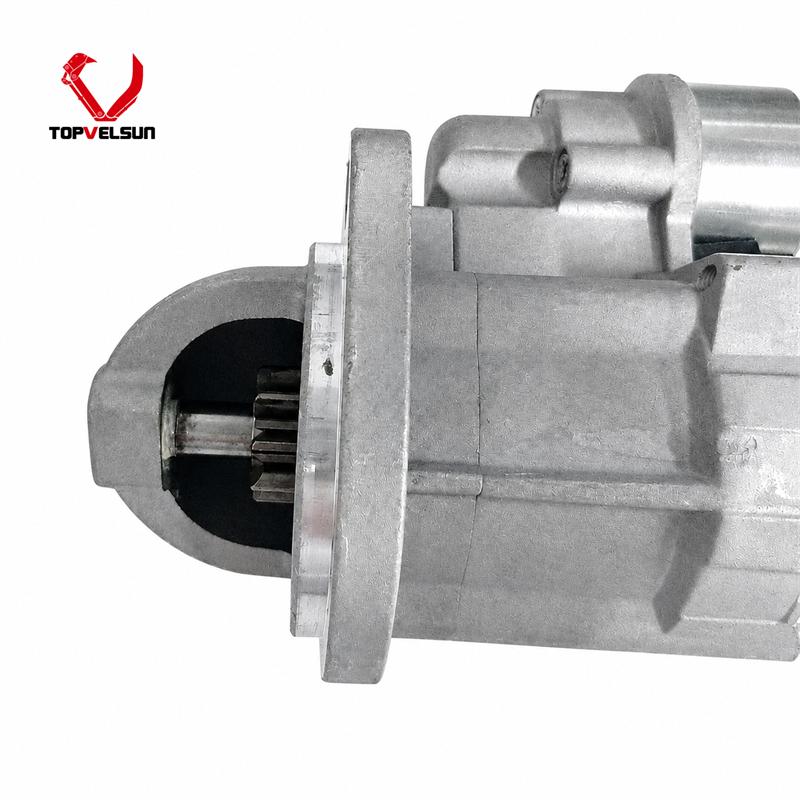

  • 3938502 starter motor solenoid and mounting detail

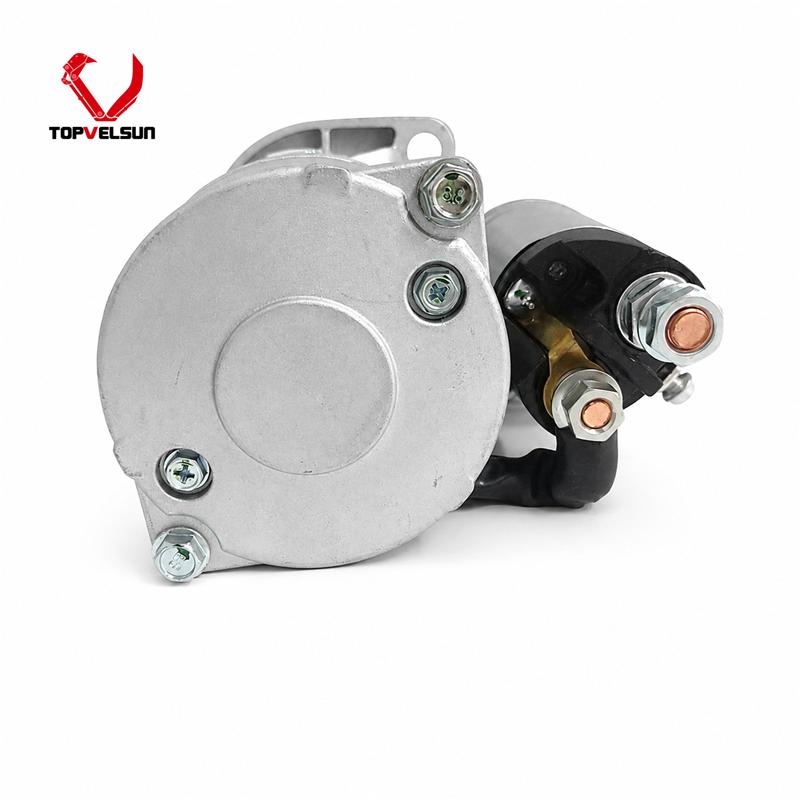

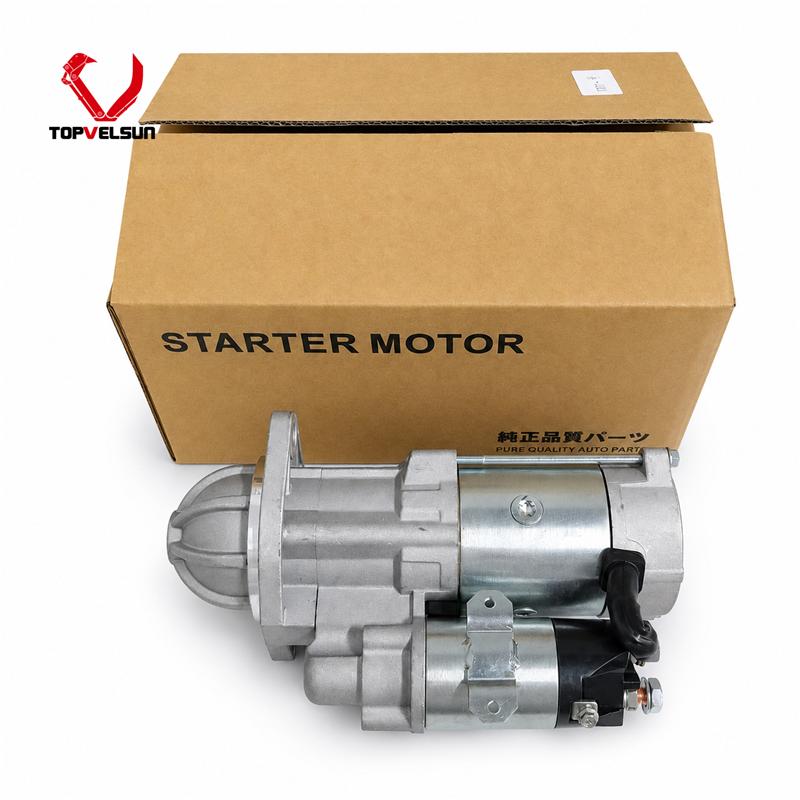

  • Cummins 6CT8.3 starter motor 3938502 with package

3938502 24V 12T Starter Motor for Cummins 6CT8.3 Engine

Part Number: 3938502

Related Ref: 3102767 / 5256414 / 5284105 / 5284106 / 5367768

MOQ: 1 Piece

Warranty: 6 Months

Lead Time: 7 - 15 Days

Product Type: 24V 12T Starter Motor / Starting Motor

Compatible: Cummins 6CT8.3 ISC 8.3L engine references

Get a Quote

Product Description

3938502 Starter Motor for Cummins 6CT8.3 Engine

The 3938502 starter motor is used for Cummins engine starting system applications. It is commonly searched as a Cummins starter motor, 24V starter motor, 12 teeth starter motor or starting motor for Cummins 6CT8.3 and ISC 8.3L engine service.

This page focuses on 3938502 as the main part number. Common checking references include 24V, 12 teeth, CW rotation and 3 mounting holes. Final confirmation should be made by the removed starter number, voltage, teeth count, mounting hole layout, rotation, starter series and engine model.

Cummins 6CT8.3 ISC 8.3L Application Reference

Common engine references for 3938502 include Cummins 6CT8.3, 6CTA8.3 and ISC 8.3L. Some public application references also mention CASE 9040, 9040B and 9045B excavator groups when this starter is supplied under related numbers such as 5284105 and 5284106.

Because starter motor configuration can vary by engine arrangement, flywheel housing and previous replacement history, engine model alone should not replace old starter checking before quotation.

Part Number and Specification Notes

Main Part Number3938502
Product NameStarter Motor / Starting Motor
Voltage24V
Teeth12T / 12 Teeth
Mounting Holes3 mounting holes reference
RotationCW checking reference
Power Reference7.5kW reference, verify with the actual starter supplied
Related References3102767 / 5256414 / 5284105 / 5284106 / 5367768 / 10479118, verify before quotation

Information Needed Before Quotation

  • Old starter motor part number or clear nameplate photo.

  • Cummins engine model and machine model.

  • Voltage, teeth count and mounting hole confirmation.

  • Starter series, solenoid position and plug position photos.

  • Old starter comparison photos before shipment.

Related Products
24V 7KW Starter Motor 2071556 Fit for Caterpillar Cat 3406 3412 3456 3508 3512 3516 Engine 24V 7KW Starter Motor 2071556 Fit for Caterpillar Cat 3406 3412 3456 3508 3512 3516 Engine
28100-E0080 24V 5kW Starter Motor for Hino J08C J08E Engine 28100-E0080 24V 5kW Starter Motor for Hino J08C J08E Engine
22851149 VOE22851149 24V Starter Motor for Volvo Excavator 22851149 VOE22851149 24V Starter Motor for Volvo Excavator

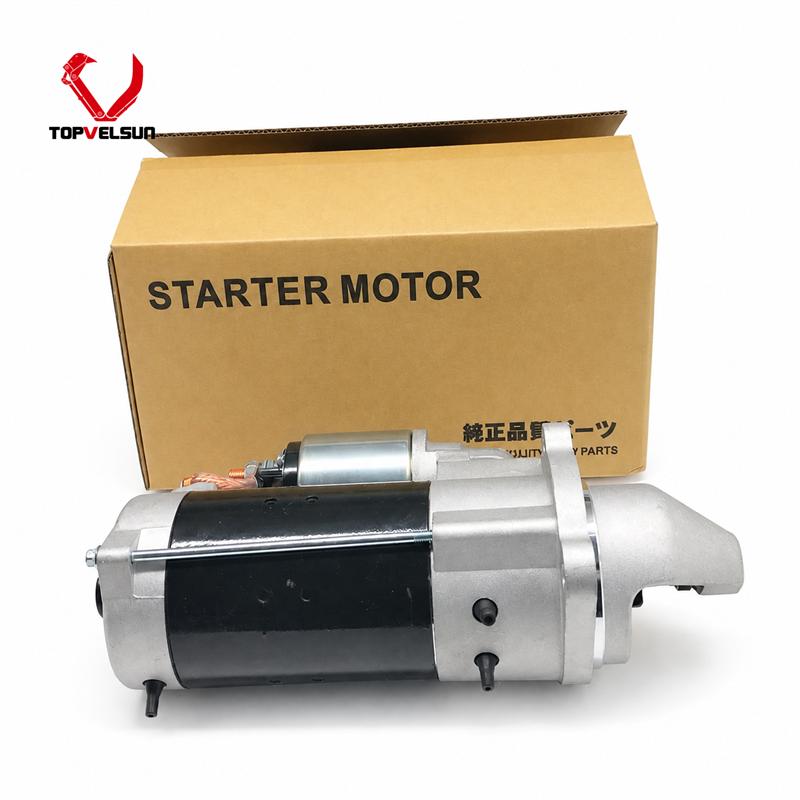

0001362305 0-001-362-305 12V Starter Motor for Deutz Engine F4L912 F4L913 0001362305 0-001-362-305 12V Starter Motor for Deutz Engine F4L912 F4L913
