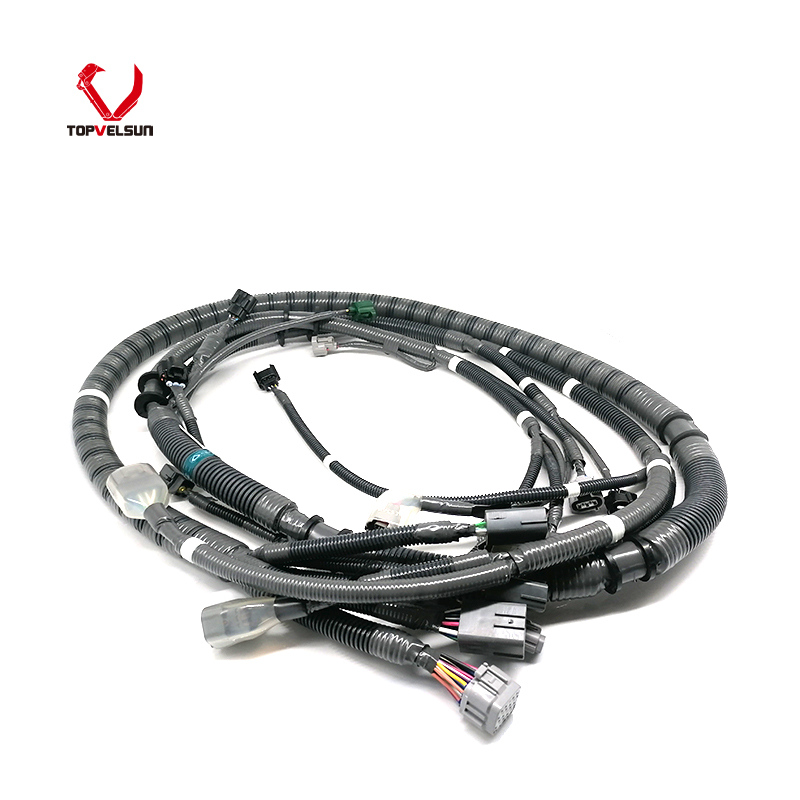

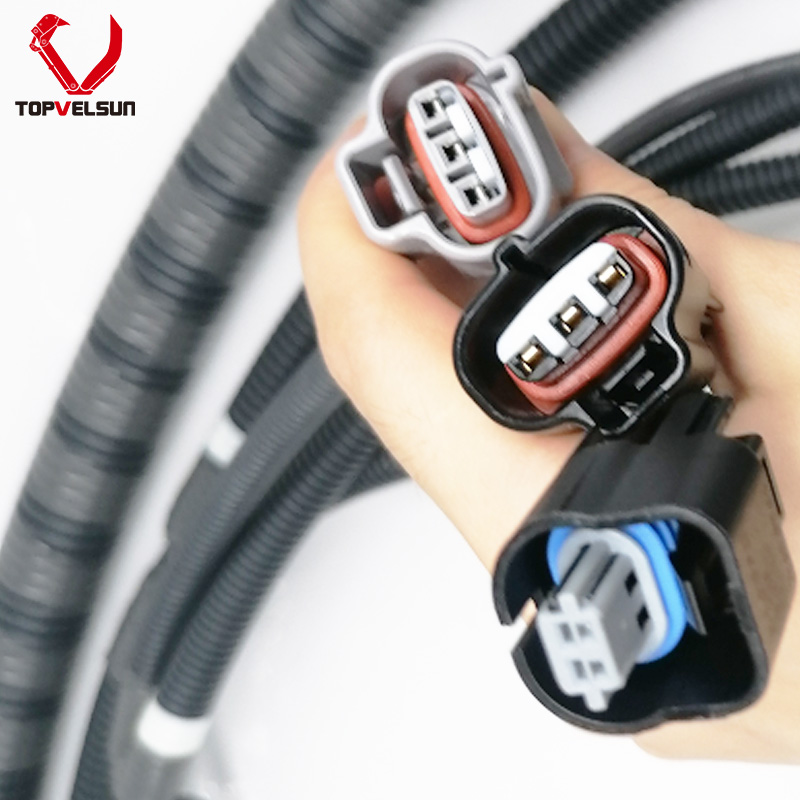

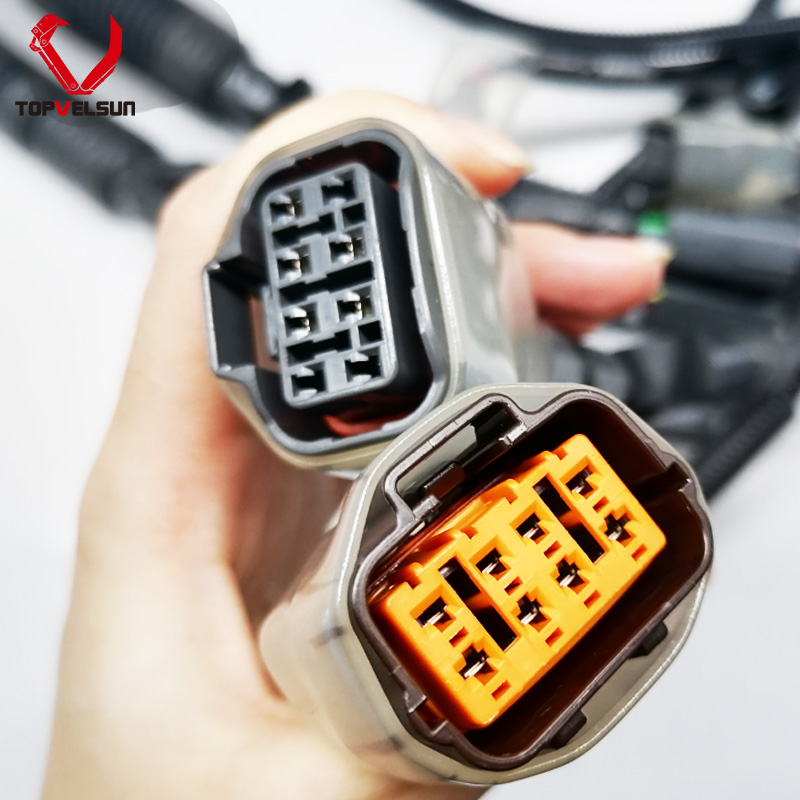

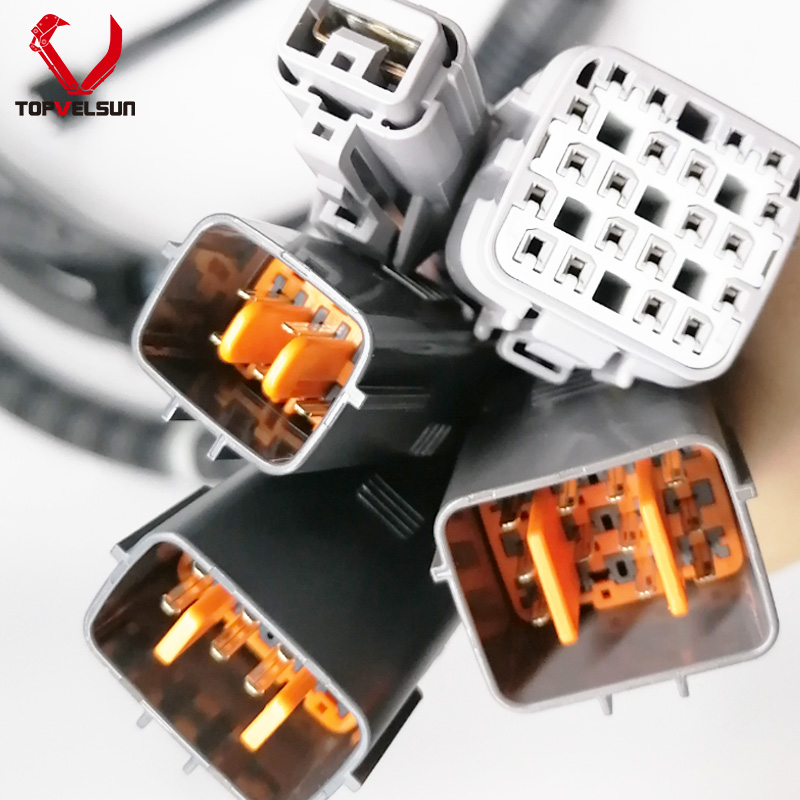

8-98089338-2 Engine Wiring Harness for Isuzu 6WG1 Engine Hitachi ZX450-3 ZX470-3 ZX650-3 ZX850-3

8-98089338-2 Engine Wiring Harness for Isuzu 6WG1

This aftermarket engine wiring harness is offered under part number 8-98089338-2 for Isuzu 6WG1 applications. On the current product page, it is listed for Hitachi ZX450-3, ZX470-3, ZX650-3 and ZX850-3. For accurate ordering, confirm the original part number together with the machine model and serial number before purchase.

What this harness supports on 6WG1 electronic engines

On 6WG1 electronic-control engines, the ECM manages key functions such as electronic fuel injection, EGR control, VNT turbocharger control and self-diagnostic monitoring. Because these systems depend on stable sensor and actuator signals, harness condition, connector integrity, circuit continuity and clean grounds are critical to reliable starting, stable running and accurate fault diagnosis.

Typical symptoms that may require harness and connector inspection

If the engine harness or related connectors develop poor contact, corrosion, insulation damage or intermittent open/short conditions, the machine may show symptoms such as hard starting, unstable operation, poor response, low power, smoke, charging/start issues or intermittent warning codes. In the OEM troubleshooting section, Isuzu specifically tells technicians to check harness routing, connector seating, grounds and intermittent movement-related faults before replacing expensive components.

Common 6WG1 fault codes that warrant circuit inspection

When troubleshooting a 6WG1 electronic engine, these OEM-listed DTCs commonly justify a focused check of the engine harness, connectors and related circuits:

• P0335 / Flash Code 15 — Crankshaft Position Sensor Circuit

• P0201–P0206 / Flash Codes 271–276 — Injector Circuit Open, Cylinders 1–6

• P0192 / P0193 / Flash Code 245 — Fuel Rail Pressure Sensor Circuit Low / High

• P0045 / Flash Code 33 — Turbocharger Boost Control Solenoid Circuit

• P0299 / Flash Code 65 — Turbocharger Underboost

• P0641 / P0651 / P0697 — Sensor Reference Voltage circuit faults

These codes do not automatically mean the harness itself has failed, but OEM diagnostics repeatedly direct the technician to inspect connector condition, reference voltage, low-reference circuits, signal circuits, open/short faults and harness continuity before condemning the sensor, actuator or ECM.

OEM-style troubleshooting workflow for harness-related faults

For 6WG1 electrical faults, the safest OEM-style workflow is:

1. Read and record DTCs with a scan tool, including snapshot/freeze information if available.

2. Inspect connector seating and terminal condition for incomplete engagement, deformation, corrosion, moisture entry or damaged insulation.

3. Check power, ground, reference voltage and continuity with a digital multimeter and the correct terminal adapter.

4. Move the related harness and connectors while monitoring live data to identify intermittent open/short conditions caused by vibration or harness movement.

5. After repair, clear the DTC, turn the ignition OFF for at least 30 seconds, restart and verify under operating conditions.

Official installation and maintenance precautions

Follow OEM electrical-service precautions during installation and maintenance:

• Disconnect the battery negative terminal before service on the engine electrical system.

• Do not touch ECM terminal pins directly and protect electronic parts from ESD.

• Do not use a test lamp unless the procedure specifically calls for it; use a DMM and the proper terminal adapter.

• Keep the harness away from hot exhaust components and inspect for crushed, cut, worn or hardened insulation.

• Check for rust, water ingress and poor terminal contact inside connectors.

• Verify that power and ground points are clean and secure after reassembly.

FAQ

Q1. What should be checked first if the engine starts hard or stalls intermittently?

Start with DTC reading, ECM grounds, connector seating and live-data monitoring. The OEM manual says intermittent faults are often related to connector movement, poor terminal fit, damaged insulation, moisture intrusion or unstable ground connections.

Q2. Which 6WG1 codes are commonly investigated when the harness or connectors are suspected?

Practical starting points include P0335, P0201–P0206, P0192/P0193, P0045 and P0299, because the OEM diagnostic paths for these codes include circuit, connector and harness checks.

Q3. Is there a public OEM torque spec specifically for this harness?

I did not find a public OEM source that gives a model-specific clamp/retainer torque or routing chart for 8-98089338-2 itself. For that reason, I would not publish any harness torque value on the page unless you have the exact Hitachi/Isuzu dealer manual page for the target serial-number range.
