20Y-60-11712 20Y-60-11713 Swing Solenoid Valve for Komatsu 6D95 Engine PC100-5 PC120-5 PC200-5 PC220-5

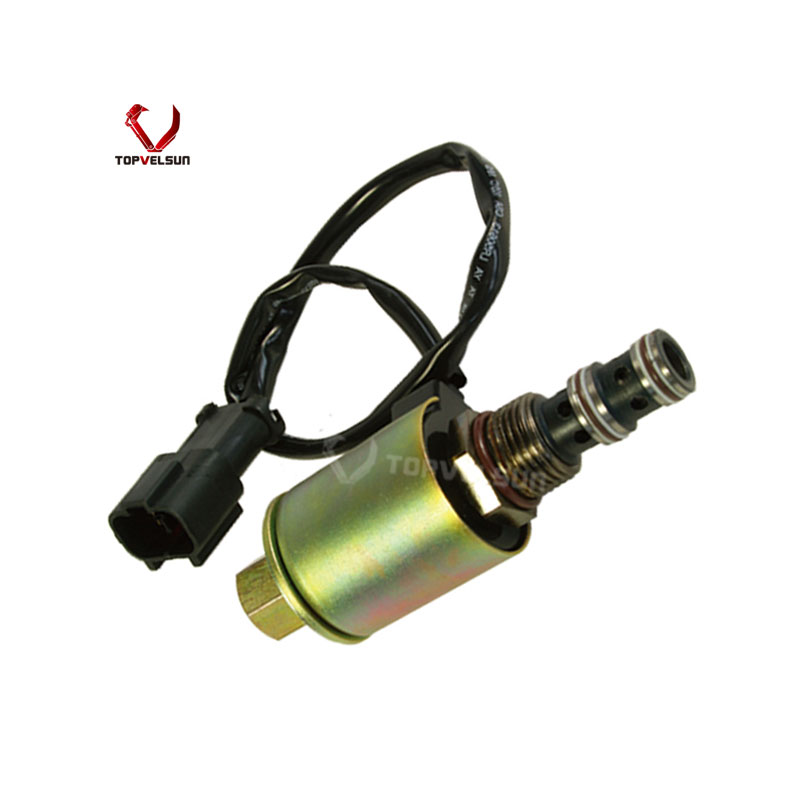

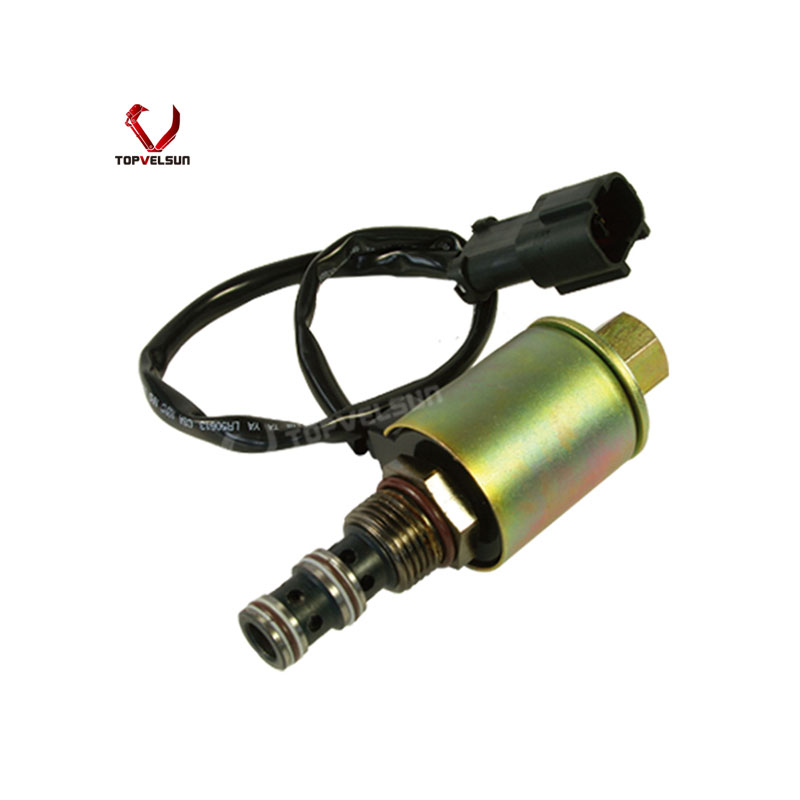

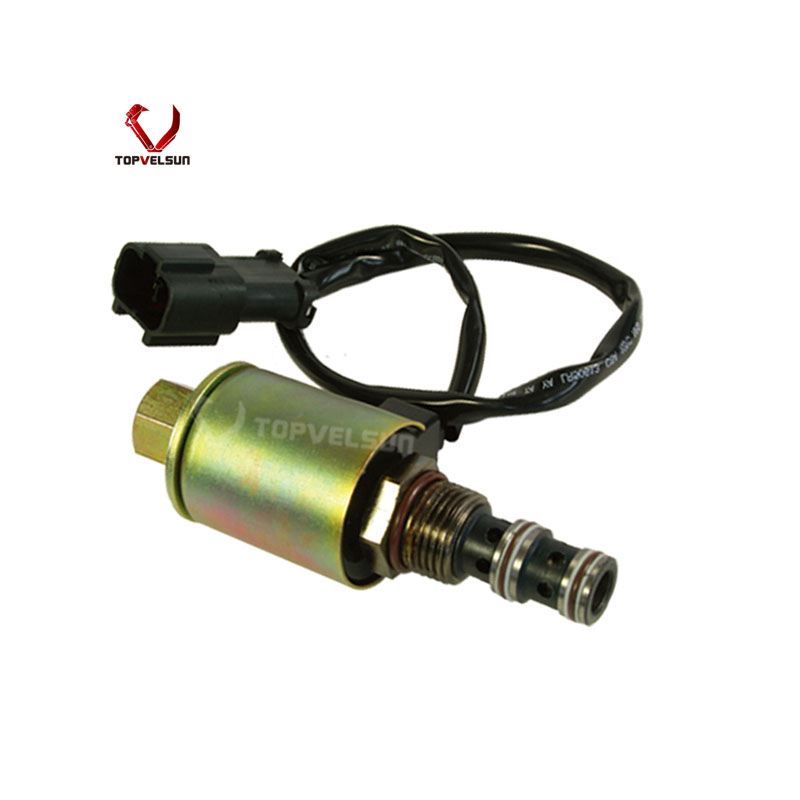

20Y-60-11712 / 20Y-60-11713 High-Performance Swing Solenoid Valve for Komatsu Machine

Restore the precise swing and rotational control of your Komatsu excavator with our heavy-duty replacement Swing Solenoid Valve (Cross-reference: 20Y-60-11712 and 20Y-60-11713). This electro-hydraulic valve is essential for safe and efficient excavator operations, preventing drift and ensuring smooth engagement of the swing brake.

Explanation of Related Trouble Codes

A failure in this solenoid is the primary cause of swing brake malfunctions. Replacing it can resolve the following monitor error codes:

Troubleshooting Guide & Installation Specs

• No Swing Action (E03 Error): Check coil resistance with a multimeter. The standard value is 28Ω±2Ω. If resistance is infinite, the coil is broken and the valve must be replaced.

• Sluggish Swing (No Error Code): Often caused by a worn spool leaking internal pressure, or a degraded coil losing magnetic force when hot (coil temp exceeding 120℃). Normal pressure drop across the valve should be ≤0.5MPa.

• Swing Drift / Slipping: Check for a stuck spool or broken return spring preventing the brake circuit from fully depressurizing.

• Installation Torque: Tighten mounting bolts to 18±2N·m. Over-tightening will warp the valve body and cause the spool to bind.

Key Features & Specifications

• OEM-Grade Coils: Manufactured with high-purity copper wiring for maximum conductivity and resistance to heat and vibration.

• Durable Construction: Hardened steel alloy body protects against hydraulic pressure spikes and corrosion.

• Exact Fitment: Designed as a direct plug-and-play replacement for Komatsu DASH-5 series machinery powered by the 6D95 engine.

Compatible Equipment & Engine Fitment

Fits Part Numbers: 20Y-60-11711 | 20Y-60-11712 | 20Y-60-11713 | 20Y-60-11711 | 20Y6011712 | 20Y6011713This premium Swing Solenoid Valve is designed as a direct OEM replacement for Komatsu excavators,

Compatible with the following models:

Compatible Komatsu Model

Excavators: PC100-5, PC100L-5, PC120-5, PC130-5, PC150-5, PC180-5, PC200-5, PC210-5, PC200LC-5, PC220-5, PC220LC-5, PC240-5K, PC650-5, PC710-5

Wheel Loader: WA430-6、WA500-6、WA500-6R、WA800-3E0

Bulldozer: WD600-6

Compatible Komatsu Engines

Note: This solenoid valve is 100% interchangeable between part numbers 20Y-60-11712 and 20Y-60-11713, direct drop-in fit, no modifications needed.
