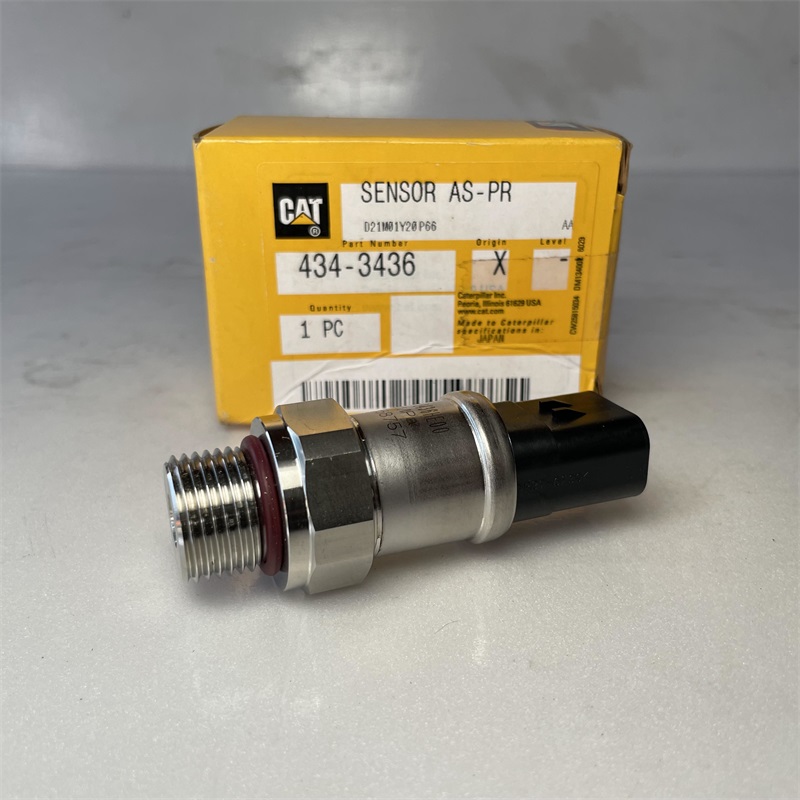

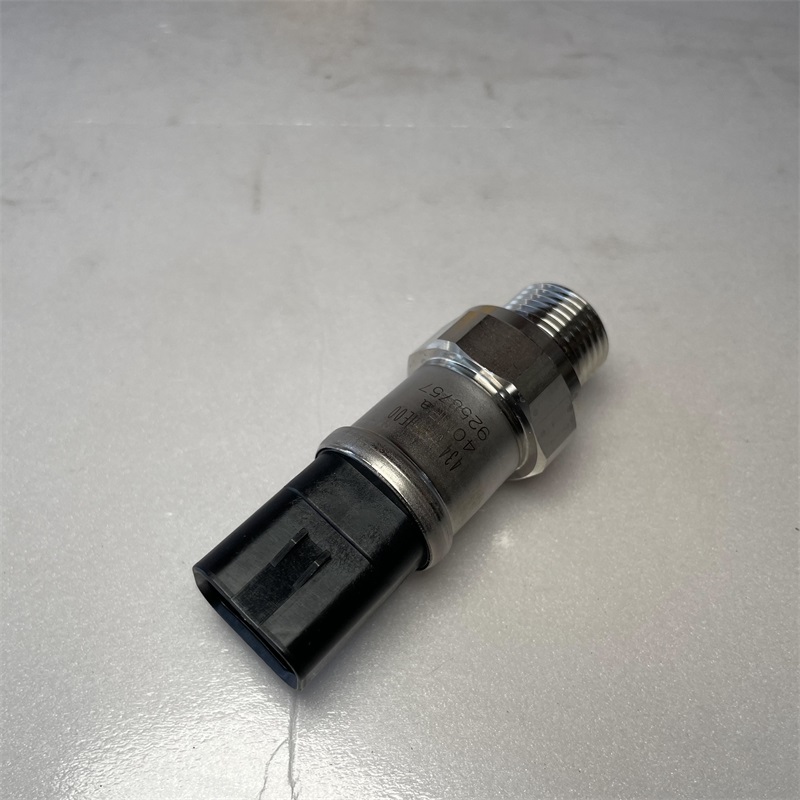

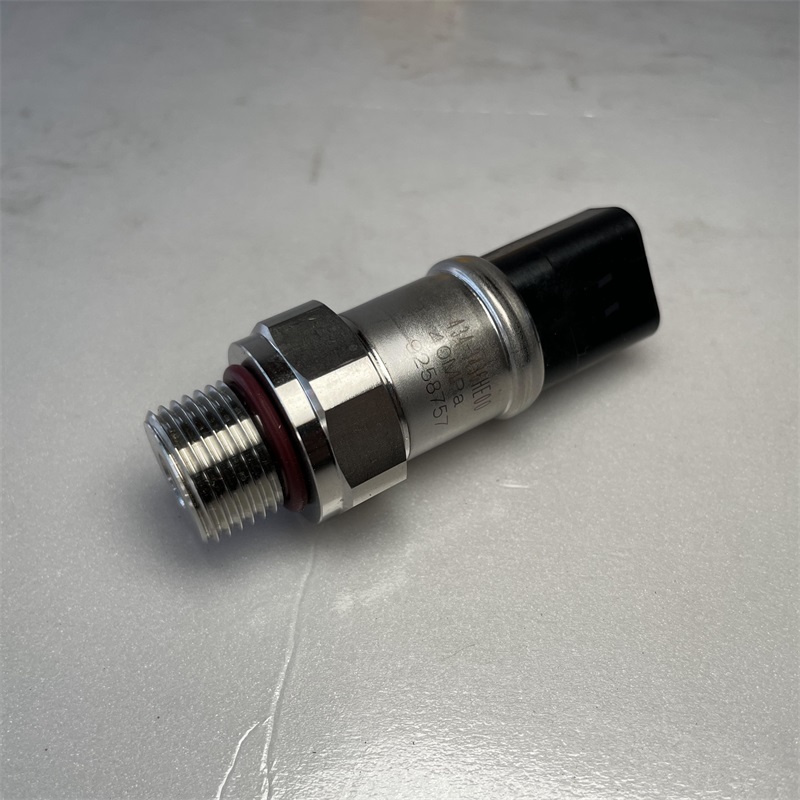

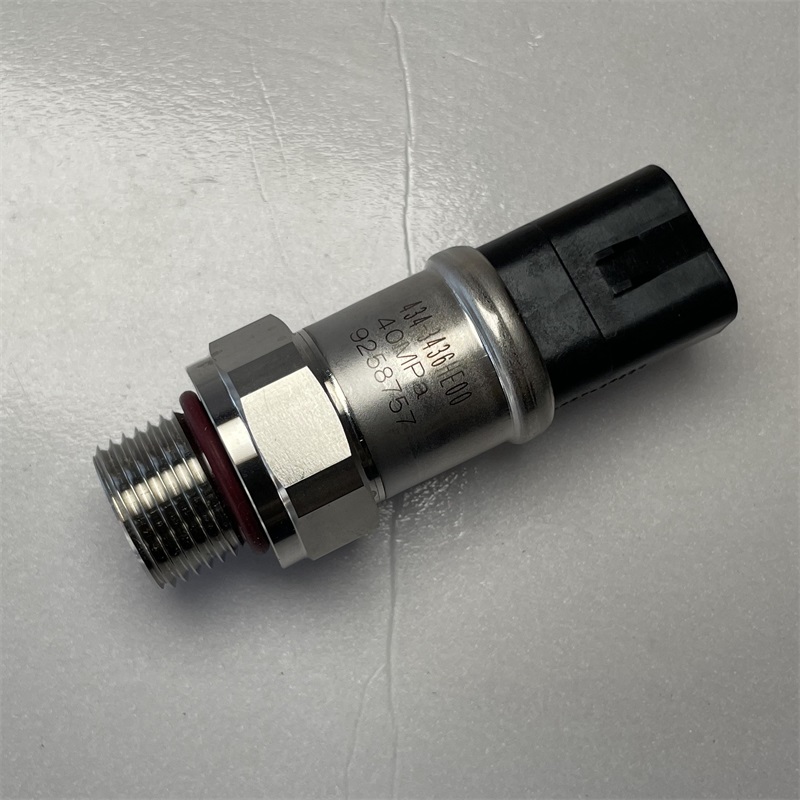

434-3436 Volt Pressure Sensor Genuine Caterpillar Parts for CAT385C .1

Product Overview

434-3436 is a high-pressure “volt” pressure sensor used on Cat® hydraulic systems. According to Cat Parts Store, it is described as a pilot filter / pilot pump pressure sensor designed to accurately measure pressure for efficient hydraulic system operation and maintenance.

OEM Reference (Authority Note)

Cat Parts Store lists 434-3436 as a “32 Volt Pressure Sensor” under Electrical & Electronics → Sensors & Switches → Other Sensors & Switches. Because equipment configurations can vary, always verify by machine model.

Key Features

- Stainless steel body for durability in harsh jobsite conditions

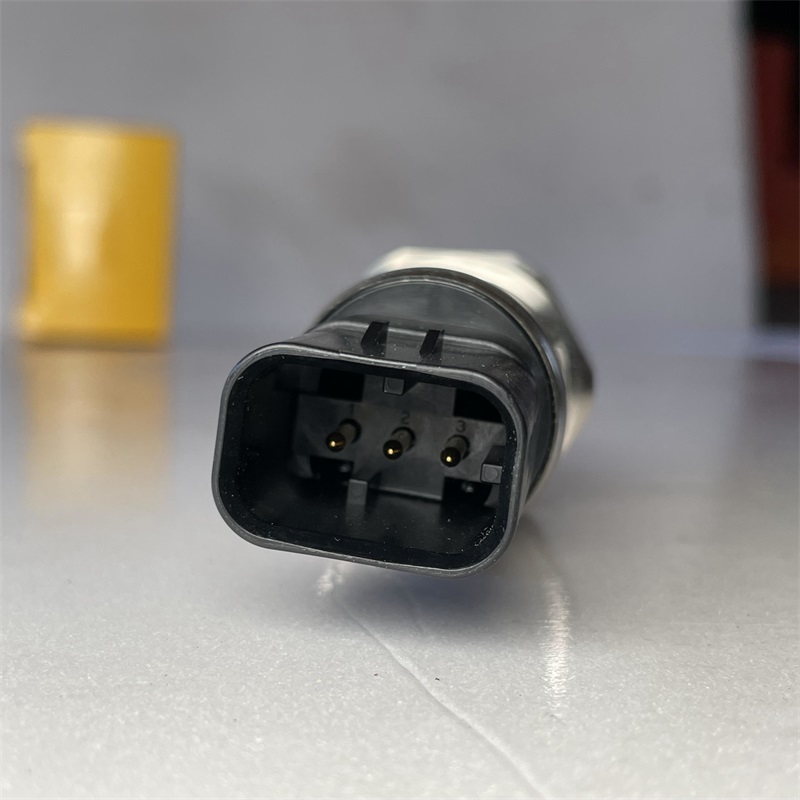

- 3-pin Ampseal male connector for secure electrical connection

- Compact form factor for easier installation and service access

Specifications (As Listed)

Pressure Capacity (kPa): 0-40,000

Hole Thread Size: 3/4-16 UNF 2A

Overall Width (in): 1.07

Overall Height (in): 1.07

Material: Stainless Steel

Overall Length (in): 2.97

Connector Type: 3 Pin Ampseal Male

Typical Symptoms When the Sensor Fails

Pressure reading is unstable / out of range

Abnormal hydraulic response due to incorrect pressure feedback

Intermittent faults caused by connector pin corrosion or harness damage

Quick Troubleshooting (Field-Style)

1. Inspect connector pins and harness routing (oil ingress, corrosion, chafing).

2. Confirm power supply/ground integrity and check signal stability under load.

3. Compare sensor reading with a mechanical gauge if available to rule out real pressure issues.

Installation Notes

- Depressurize the hydraulic circuit before removal.

- Clean the port and replace sealing O-rings as required.

- Tighten to OEM torque specification and perform a leak check after installation.

Commonly Replaced Together (Optional)

Depending on machine configuration, the pressure sensor wiring harness and sealing O-rings may be replaced together during service.

Payment & Shipping Terms

Minimum Order Quantity：1 PIECES

Delivery Methods：TNT,DHL,Fedex,EMS,UPS,or by Air/Sea

Payment Methods：Bank transfer, Western Union, Money Gram, Credit Card, Paypal

Price：Negotiation

Packaging Details：Regular packaging, carton box, wooden case

Delivery Time：7 to 30 Work days

Supply Ability：2000 Pieces Per Month
